Shaft couplings play a critical role in various mechanical systems by connecting two shafts, allowing them to transmit power while accommodating misalignment. Whether you're working with a Sureflex Coupling, Omega Coupling, Poly Norm Coupling, Flender Coupling, or Quadra Flex Coupling, selecting the right coupling and ensuring proper installation are key to optimal performance. In this article, we will explore how to choose the right coupling, prepare for installation, execute the installation steps, perform necessary adjustments, and maintain your coupling for longevity.
Choosing the right shaft coupling is essential for the efficiency and reliability of your machinery. Several factors should guide your decision:
Type of Coupling: Different applications require specific types of couplings. For instance, a Sureflex Coupling is known for its flexibility and ability to handle misalignment, making it ideal for dynamic applications. In contrast, a Flender Coupling offers high torque capacity and is suitable for heavy-duty applications.
Material Compatibility: Ensure that the coupling material is compatible with the operating environment. For instance, couplings made from corrosion-resistant materials are essential in wet or harsh environments.
Torque and Load Capacity: Assess the torque and load requirements of your application. An Omega Coupling, for example, is designed for high torque applications, while a Poly Norm Coupling can handle moderate loads effectively.
Misalignment Tolerance: Different couplings can accommodate various levels of misalignment. If your system experiences significant misalignment, consider using a flexible coupling like the Quadra Flex Coupling.
Installation Space: Evaluate the physical space available for the coupling. Some couplings, such as the Flender Coupling, may require more space for installation than others.
By considering these factors, you can select the most suitable coupling for your needs, ensuring optimal performance and reliability.
Proper preparation is crucial for a successful coupling installation. Follow these steps:
Gather Tools and Materials: Before beginning, gather all necessary tools, including:
Socket and wrench set
Torque wrench
Alignment tools (laser alignment tool or dial indicator)
Safety goggles and gloves
Read Manufacturer Instructions: Familiarize yourself with the manufacturer's installation guidelines specific to the coupling you are using. This ensures that you understand any unique requirements for that particular coupling type.
Safety Precautions: Safety should always be a priority. Wear appropriate personal protective equipment (PPE) such as gloves and safety goggles. Ensure that the machinery is powered down and secured before starting the installation process.
Inspect Existing Components: Check the condition of the shafts, bearings, and other components. Clean any dirt or debris from the shafts and ensure that they are free of rust or damage.
Installing a shaft coupling is a critical process that ensures the efficient transmission of power between rotating shafts. Below are detailed steps to guide you through the installation process, ensuring that you achieve optimal alignment and functionality.
Safety First: Before starting, ensure that the machinery is powered down and locked out to prevent accidental activation. Wear appropriate personal protective equipment (PPE), such as gloves and safety goggles.
Loosen Fasteners: Use a suitable socket wrench to loosen and remove any bolts or set screws securing the old coupling to the shafts. Take care not to damage the shaft surfaces during this process.
Inspect for Wear: As you remove the old coupling, take a moment to inspect it for wear or damage. This can provide insights into potential alignment issues or other mechanical problems that may need to be addressed.
Check Compatibility: Before installation, ensure that the new coupling is compatible with the shafts in terms of size, type, and design. Verify that it meets the specific requirements of your application.
Inspect the Coupling: Examine the new coupling for any signs of manufacturing defects or damage during transport. Check the bores and keyways for cleanliness, and ensure that any elastomer inserts (for flexible couplings) are in good condition.

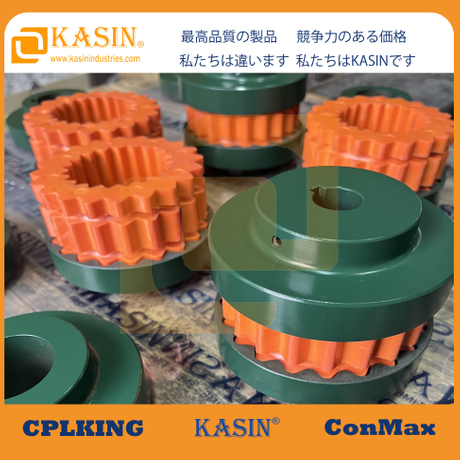

Position the Coupling: Slide the new coupling onto the shaft, ensuring it is aligned with the keyway and securely seated. For flexible couplings like the Sureflex Coupling, ensure that the elastomer insert is correctly positioned between the coupling halves.
Secure the Coupling: Once the coupling is positioned correctly, use the appropriate fasteners to secure it to the shaft. If the coupling uses set screws, tighten them snugly against the shaft while ensuring proper placement.
Alignment Techniques: Alignment is crucial for reducing wear and preventing failures. Use laser alignment tools or dial indicators to check the alignment of the shafts. Follow these methods:
Vertical Alignment: Ensure that the centers of the two shafts are level. Adjust the machinery feet or supports as necessary to achieve proper vertical alignment.
Horizontal Alignment: Check that the shafts are in line with each other. Adjust the position of the motor or driven equipment to achieve horizontal alignment.
Alignment Tolerances: Refer to the manufacturer's specifications for alignment tolerances specific to your coupling type. Misalignment can lead to increased vibration, reduced efficiency, and premature wear.
Tighten Fasteners: Once aligned, double-check the tightness of all bolts and set screws. Use a torque wrench to apply the recommended torque specified by the manufacturer to prevent loosening during operation.
Recheck Alignment: After securing the coupling, it’s advisable to recheck the alignment. Any adjustments made during the tightening process can affect alignment, so ensure everything is still within acceptable tolerances.
Initial Testing: With the coupling installed and aligned, reconnect the power supply and run the machinery at low speed. Monitor for any unusual noises, vibrations, or operational issues.
Monitoring: Pay close attention during the initial run. If any irregularities are detected, stop the machine immediately and reassess the installation.
Long-Term Monitoring: After installation, continue to monitor the coupling periodically for signs of wear, misalignment, or other issues. Regular inspections can help prevent future problems and maintain operational efficiency.
By following these detailed installation steps, you can ensure that your shaft coupling is properly installed, leading to improved performance and longevity of your mechanical systems.
Once the coupling is installed, make necessary adjustments to ensure optimal performance:
Check Alignment: After the initial alignment, it’s advisable to recheck it after the coupling has been in operation for a short period. This helps confirm that the alignment holds and that no adjustments are necessary.
Monitor Vibration Levels: Excessive vibration can indicate misalignment or imbalance. Use a vibration analysis tool to monitor levels and make adjustments as needed.
Adjust for Thermal Expansion: Be aware that thermal expansion can affect alignment. If your machinery operates in environments with significant temperature fluctuations, you may need to adjust alignment periodically.
Regular maintenance is essential for prolonging the life of your shaft coupling and ensuring efficient operation. Here are some best practices:
Routine Inspections: Regularly inspect the coupling and surrounding components for signs of wear, misalignment, or damage. Look for unusual noises or vibrations that could indicate issues.
Lubrication: Some couplings require periodic lubrication. Check the manufacturer's recommendations for your specific coupling type and apply lubricant as necessary.
Cleanliness: Keep the coupling area clean and free from contaminants. Dirt and debris can cause wear and affect performance.
Replacement: Be proactive about replacing worn or damaged couplings. Delaying replacement can lead to more significant problems down the line.
Documentation: Maintain records of installation and maintenance activities. This documentation can be invaluable for troubleshooting and future reference.
Installing a shaft coupling may seem daunting, but with the right preparation and knowledge, it can be accomplished successfully. By selecting the right coupling, following proper installation procedures, making necessary adjustments, and committing to regular maintenance, you can ensure that your machinery operates efficiently and reliably. Whether you choose a Sureflex Coupling, Omega Coupling, Poly Norm Coupling, Flender Coupling, or Quadra Flex Coupling, understanding these steps will lead to better performance and longevity of your mechanical systems.
