Normex Coupling NM Coupling Vs Jaw Coupling What Is The Difference

When customers ask us to compare Normex Coupling NM Coupling vs jaw coupling, they usually have a practical goal: they want stable torque transmission with less vibration, fewer alignment headaches, and predictable maintenance. On paper, both coupling types are “flexible couplings” and both use an elastomer element to accommodate small misalignment and reduce shock. In real installations, however, they behave differently in torque capacity, damping feel, service method, and how forgiving they are under variable loads. If you choose the wrong type, the symptoms are familiar—premature elastomer wear, unexpected vibration, frequent re-alignment, or an annoying “chatter” in start/stop duty.

From our production and application support experience, the best way to understand the difference is not to memorize brand names. It is to compare structure, elastomer element design, misalignment handling, damping characteristics, and maintenance workflow. At Kasin Industries (Shanghai) Co., Ltd., we help buyers match couplings to motors, gearboxes, pumps, fans, compressors, conveyors, and general industrial drives. In this article, we’ll break down how an NM coupling (Normex type) differs from a typical jaw coupling, when each one makes sense, and what to check in your RFQ so you receive the correct configuration.

Quick definition: what is an NM coupling (Normex type)?

In common market usage, NM coupling (often called Normex coupling style) refers to a flexible coupling design that uses two hubs and a replaceable elastomer element between them. The elastomer element is typically shaped differently from a classic jaw “spider” and may be offered in different hardness options to tune damping and torsional stiffness.

Key characteristics often associated with NM (Normex type) couplings:

• strong shock absorption for start/stop loads

• practical misalignment accommodation (within design limits)

• replaceable elastomer element for service

• common use in pumps, fans, compressors, gear drives, and general industrial equipment

(Exact performance depends on the specific series, hub style, and elastomer hardness.)

Quick definition: what is a jaw coupling?

A jaw coupling typically consists of two metal hubs with “jaws” and an elastomer “spider” in between. The spider transmits torque while providing damping and allowing limited misalignment.

Key characteristics often associated with jaw couplings:

• compact, cost-effective general-purpose flexible coupling

• simple design and wide availability

• easy installation and replacement of spider

common use in small to medium drives, pumps, blowers, packaging equipment, and light industrial systems

The main difference is the elastomer interface design

Both coupling types rely on elastomer, but the shape and load path differ. That changes how torque is carried and how vibration is damped.

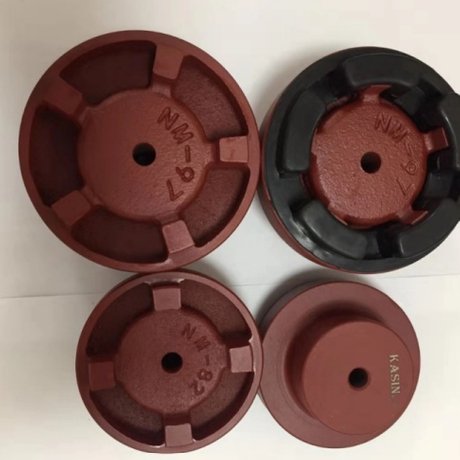

NM coupling (Normex type) elastomer interface

• elastomer element often has a larger contact area and a geometry designed for steady torque with damping

• often feels “more damped” under load changes, depending on elastomer hardness

• element replacement may be designed for quicker service with minimal hub movement (depends on design)

Jaw coupling elastomer interface

• spider sits between jaws and compresses under load

• can be very practical for general duty and easy replacement

• depending on spider material, can be softer (more damping) or harder (more stiffness)

The practical takeaway: NM coupling designs often target smoother torque transfer and strong shock damping for heavier or more variable duty, while jaw couplings often target compactness and general-purpose flexibility.

Comparison table: NM (Normex) coupling vs jaw coupling

How each coupling handles misalignment

Misalignment is one of the biggest hidden costs in power transmission. Both types can handle:

• angular misalignment

• parallel (offset) misalignment

• axial movement (limited)

But the difference is how they behave when the real world is not perfect—foundation settling, thermal growth, pipe strain on pumps, or quick motor swaps.

NM coupling (Normex type)

often chosen when the user expects real industrial conditions and wants a coupling that stays stable with small alignment variation

element geometry can help reduce vibration transmission and absorb shock from load changes

in pump and fan duty, this can feel smoother in operation

Jaw coupling

• can be very forgiving when alignment is good and duty is moderate

• spider wear may accelerate if misalignment is beyond the recommended range

• if alignment control is weak, you may see earlier spider deformation or cracking, depending on material

Practical guidance: if your installation environment has frequent alignment disturbance or variable load shock, buyers often lean toward NM coupling solutions. If alignment is controlled and loads are moderate, jaw coupling can be a simple and economical choice.

Vibration damping and “system feel” in operation

This is where buyers often notice the difference without realizing it. Coupling elastomer design influences:

• start-up smoothness

• stop shock

• torque ripple transmission

• noise and vibration levels

When NM couplings often feel better

• frequent start/stop drives

• conveyor lines with intermittent loading

• pump systems where pipe strain causes micro-movement

• drives where operator comfort and smoothness matter

When jaw couplings are perfectly adequate

• steady running duty with limited shock

• smaller motors and compact equipment

• applications where cost and standardization are priorities

Maintenance differences that affect downtime

Both are serviceable, but the service workflow can differ.

Jaw coupling maintenance

• spider replacement is typically very quick

• spares are widely available

• common failure sign is spider wear or cracking

• easy to standardize for multiple machines

NM coupling maintenance

• elastomer element replacement is also straightforward

• may offer stable performance in heavier duty

• selection of elastomer hardness can help tune service life vs damping

for some designs, element replacement can be done with limited hub movement (depending on your coupling construction and space)

If your site prioritizes simplest possible standard spare handling, jaw coupling is often favored. If your site prioritizes more stable performance under variable duty, NM coupling often becomes the preferred standard.

Selection guide: which one is “better” for your application?

There is no universal winner. Here’s a practical way we advise customers to decide.

Choose Normex Coupling / NM Coupling when:

• your drive sees frequent starts and stops

• load changes are sharp or unpredictable

• you want stronger damping “feel” and smoother torque behavior

• your equipment is medium to higher torque or more industrial duty

• you want a coupling that performs consistently in real-world alignment conditions (within spec)

Choose Jaw Coupling when:

• you want a compact, widely used, cost-effective coupling

• loads are moderate and operation is relatively steady

• you want fast spider replacement and easy standardization

• you have limited installation space

• your team already stocks jaw coupling spiders and wants simplicity

Closing thoughts

So, Normex Coupling NM Coupling vs jaw coupling—what is the difference? In simple terms, both are elastomer flexible couplings, but they differ in elastomer interface design, “system feel,” duty suitability, and maintenance style. Jaw couplings are widely used for compact, cost-effective general duty with easy spider replacement. NM (Normex type) couplings are often chosen when users want more stable behavior under variable loads, stronger damping, and a coupling style that feels more industrial-duty in many pump, fan, and conveyor applications.

At Kasin Industries (Shanghai) Co., Ltd., we support customers in selecting coupling solutions based on real operating conditions—torque, misalignment, start/stop patterns, and maintenance preferences. If you are choosing between an NM coupling and a jaw coupling for your equipment, you can learn more through Kasin Industries (Shanghai) Co., Ltd. and contact our team for selection guidance and product details.

FAQ

1) Is an NM coupling the same as a jaw coupling?

They are both flexible couplings using an elastomer element, but the structure and elastomer interface design are different, which affects damping, service behavior, and typical duty suitability.

2) Which is better for vibration and shock loads, NM coupling or jaw coupling?

Many users prefer NM coupling designs for variable loads and frequent start/stop duty because they often provide strong damping behavior, while jaw couplings are excellent for general-purpose applications when loads are moderate.

3) What causes elastomer wear in NM couplings and jaw couplings?

Common causes include misalignment beyond the recommended range, overload, high cycling shock, and environmental exposure (heat, oil, dust). Correct sizing and proper alignment improve service life.

4) What should I provide when requesting a quote for Normex Coupling NM Coupling?

Include motor power and speed, torque/duty type, both shaft diameters, keyway or clamp requirements, environment conditions, and space limits to ensure the correct coupling size and elastomer selection.
