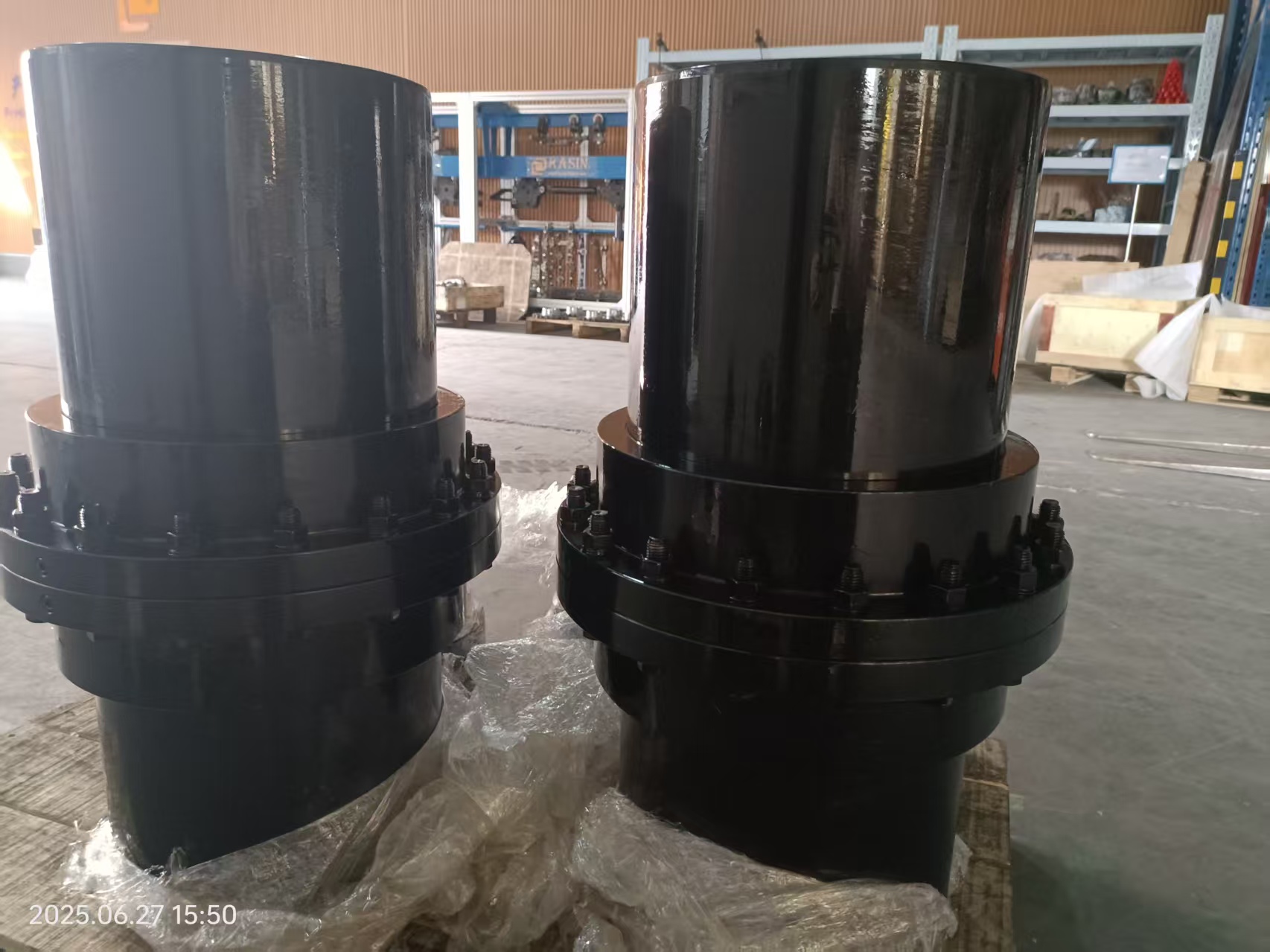

Gear Coupling
KASIN

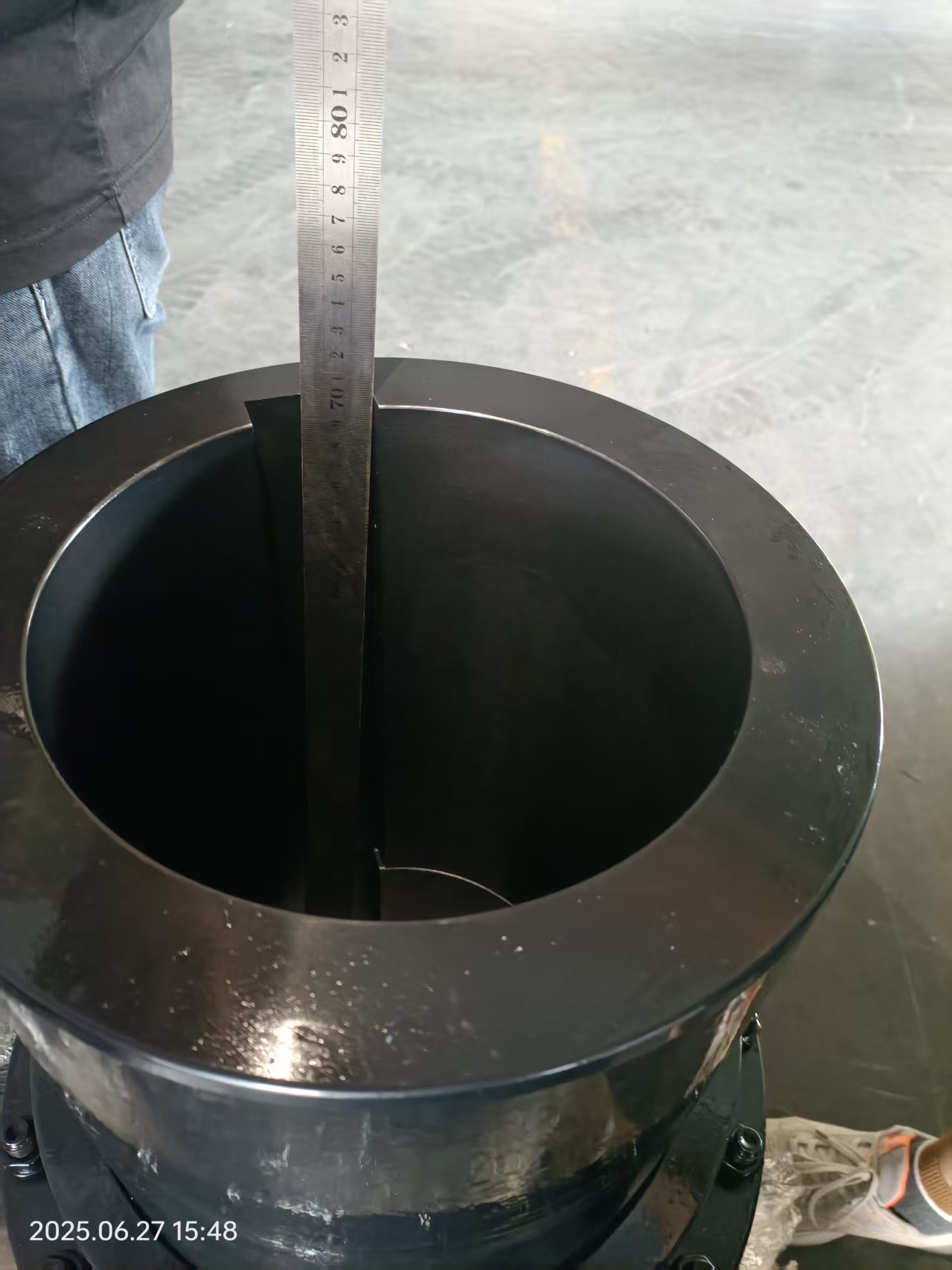

1. Product Overview
Kasin Gear Couplings are precision mechanical components designed to connect rotating shaft ends, enabling efficient transmission of torque and motion between two shafts. Their primary function is to maintain continuous and stable power transmission while accommodating inherent axial displacement and angular misalignment that may occur during operation or installation.
2. Core Advantages & Features
High Power Density: Offers the highest torque transmission capacity per unit size among comparable products.
Exceptional Adaptability: Available in a wide range of sizes, torque capacities, and bore diameters. Supports extensive customization, including shear pin safety mechanisms, floating shaft designs, vertical applications, and brake drum integration.
Robust Durability: Hubs and outer sleeves are manufactured from hardened carbon steel, ensuring superior wear resistance and extended service life.
Full Interchangeability: Designed to be fully compatible with industry-standard specifications, facilitating easy replacement and sourcing.
3. Key Product Specifications & Services
Standard Inventory: G20 series flexible couplings (sizes 10FF–70FF) and G52 series rigid couplings (sizes 10–50) are readily available in stock for fast delivery.
Torque & Bore Capacity: Accommodates shaft diameters from 1/2" to 11" and torque ratings from 10,000 to 1,100,000 lb-in.
Custom Manufacturing: Capable of producing couplings up to size 220FF, with a maximum bore of 28" and a torque capacity of 24 million lb-in.
Specialized Services: Provides reboring services to support clearance fits, interference fits, and splined bore requirements.
4. Selection & Installation Guidance
Selection Support: Includes a detailed calculation example to guide users in accurately selecting the appropriate model based on parameters such as motor power, peak torque, speed, and shaft dimensions.
Professional Installation Guidelines: Detailed procedures are provided for various fitting methods (clearance fit, interference fit, tapered bore), including critical considerations such as controlled heating temperatures and axial positioning measurements. Precise shaft alignment is emphasized as fundamental to ensuring optimal performance and longevity.
Maintenance Recommendations: An annual maintenance plan is advised, including checks for alignment accuracy, seal condition, and relubrication procedures.
Kasin Gear Couplings deliver exceptional value through their proven reliability, high power density, and extensive adaptability. They provide a comprehensive solution ranging from standard to fully customized products, backed by robust technical support including detailed selection examples, professional installation guidance, and maintenance protocols. These couplings are an ideal choice for heavy-duty, high-torque industrial power transmission applications.
1. Product Overview
Kasin Gear Couplings are precision mechanical components designed to connect rotating shaft ends, enabling efficient transmission of torque and motion between two shafts. Their primary function is to maintain continuous and stable power transmission while accommodating inherent axial displacement and angular misalignment that may occur during operation or installation.
2. Core Advantages & Features
High Power Density: Offers the highest torque transmission capacity per unit size among comparable products.
Exceptional Adaptability: Available in a wide range of sizes, torque capacities, and bore diameters. Supports extensive customization, including shear pin safety mechanisms, floating shaft designs, vertical applications, and brake drum integration.
Robust Durability: Hubs and outer sleeves are manufactured from hardened carbon steel, ensuring superior wear resistance and extended service life.
Full Interchangeability: Designed to be fully compatible with industry-standard specifications, facilitating easy replacement and sourcing.
3. Key Product Specifications & Services
Standard Inventory: G20 series flexible couplings (sizes 10FF–70FF) and G52 series rigid couplings (sizes 10–50) are readily available in stock for fast delivery.
Torque & Bore Capacity: Accommodates shaft diameters from 1/2" to 11" and torque ratings from 10,000 to 1,100,000 lb-in.
Custom Manufacturing: Capable of producing couplings up to size 220FF, with a maximum bore of 28" and a torque capacity of 24 million lb-in.
Specialized Services: Provides reboring services to support clearance fits, interference fits, and splined bore requirements.
4. Selection & Installation Guidance
Selection Support: Includes a detailed calculation example to guide users in accurately selecting the appropriate model based on parameters such as motor power, peak torque, speed, and shaft dimensions.
Professional Installation Guidelines: Detailed procedures are provided for various fitting methods (clearance fit, interference fit, tapered bore), including critical considerations such as controlled heating temperatures and axial positioning measurements. Precise shaft alignment is emphasized as fundamental to ensuring optimal performance and longevity.
Maintenance Recommendations: An annual maintenance plan is advised, including checks for alignment accuracy, seal condition, and relubrication procedures.
Kasin Gear Couplings deliver exceptional value through their proven reliability, high power density, and extensive adaptability. They provide a comprehensive solution ranging from standard to fully customized products, backed by robust technical support including detailed selection examples, professional installation guidance, and maintenance protocols. These couplings are an ideal choice for heavy-duty, high-torque industrial power transmission applications.
| Product Code | KASIN Size | Torque Rating (Nm) | Allow Speed RPM | A | B | C | D | F | H | J | M | GAP | Weight |
| 023.0205.10.10 | 1010 | 1,140 | 8,000 | 115.9 | 88.9 | 42.9 | 68.6 | 83.8 | 14.0 | 38.9 | 51 | 3 | 4.54 |
| 023.0206.10.15 | 1015 | 2,350 | 6,500 | 152.4 | 101.6 | 49.3 | 86.4 | 105.2 | 19.0 | 47.8 | 61 | 3 | 9.07 |
| 023.0207.10.20 | 1020 | 4,270 | 5,600 | 177.8 | 127.0 | 62.0 | 105.2 | 126.5 | 19.0 | 59.4 | 77 | 3 | 15.90 |
| 023.0208.10.25 | 1025 | 7,470 | 5,000 | 212.7 | 158.9 | 77.0 | 130.6 | 154.9 | 21.8 | 71.6 | 92 | 5 | 29.50 |
| 023.0209.10.30 | 1030 | 12,100 | 4,400 | 239.7 | 187.4 | 91.2 | 152.4 | 180.3 | 21.8 | 83.8 | 107 | 5 | 43.10 |
| 023.0210.10.35 | 1035 | 18,500 | 3,900 | 279.4 | 218.9 | 106.4 | 177.8 | 211.3 | 28.4 | 97.5 | 130 | 6 | 68.00 |
| 023.0211.10.40 | 1040 | 30,600 | 3,600 | 317.5 | 247.3 | 120.6 | 209.6 | 245.4 | 28.4 | 111.3 | 145 | 6 | 97.50 |
| 023.0212.10.45 | 1045 | 42,000 | 3,200 | 346.1 | 277.7 | 134.9 | 235.0 | 274.1 | 28.4 | 122.9 | 166 | 8 | 136.00 |
| 023.0213.10.50 | 1050 | 56,600 | 2,900 | 388.9 | 314.3 | 153.2 | 254.0 | 305.8 | 38.1 | 140.7 | 183 | 8 | 191.00 |
| 023.0214.10.55 | 1055 | 74,000 | 2,650 | 425.4 | 344.3 | 168.1 | 279.4 | 334.3 | 38.1 | 158.0 | 204 | 8 | 249.00 |
| 023.0215.10.60 | 1060 | 90,400 | 2,450 | 457.2 | 384.4 | 188.2 | 304.8 | 366.0 | 25.4 | 169.2 | 229 | 8 | 306.00 |
| 023.0216.10.70 | 1070 | 135,000 | 2,150 | 527.0 | 451.5 | 220.7 | 355.6 | 424.9 | 28.4 | 195.6 | 267 | 10 | 485.00 |
| Product Code | KASIN No. | Pitch | E | Sidebar | Height | PIN | Length | Dia | Width | Min.T/Strength | Weight |
| P | T | H | D | A | R | F | kN | kg/FT | |||
| 001.0001.078.1 | WR78 | 66.27 | 25.40 | 6.40 | 31.75 | 12.70 | 75.00 | 21.34 | 51.00 | 120.00 | 2.00 |
| 001.0002.078.2 | WH78 | 66.27 | 25.40 | 6.40 | 31.75 | 12.70 | 75.00 | 21.34 | 51.00 | 146.80 | 2.00 |
| 001.0003.082.1 | WR82 | 78.10 | 28.58 | 6.40 | 31.75 | 14.29 | 82.30 | 25.40 | 57.15 | 133.50 | 2.20 |
| 001.0004.082.2 | WH82 | 78.10 | 28.58 | 6.40 | 31.75 | 14.29 | 82.30 | 25.40 | 57.15 | 160.00 | 2.20 |
| 001.0005.124.1 | WR124 | 101.60 | 38.10 | 9.70 | 38.1 | 19.05 | 107.00 | 31.75 | 71.40 | 240.00 | 3.60 |
| 001.0006.124.2 | WH124 | 101.60 | 38.10 | 9.70 | 38.1 | 19.05 | 107.00 | 31.75 | 71.40 | 250.00 | 3.60 |
| 001.0007.111.1 | WR111 | 120.90 | 57.20 | 9.50 | 38.1 | 19.05 | 124.90 | 31.75 | 69.85 | 203.00 | 3.84 |
| 001.0008.111.2 | WH111 | 120.90 | 57.20 | 9.50 | 38.1 | 19.05 | 124.90 | 31.75 | 69.85 | 265.00 | 3.84 |
| 001.0009.106.1 | WR106 | 152.40 | 38.10 | 9.70 | 38.1 | 19.05 | 107.00 | 31.75 | 69.85 | 240.00 | 3.00 |
| 001.0010.106.2 | WH106 | 152.40 | 38.10 | 9.70 | 38.1 | 19.05 | 107.00 | 31.75 | 69.85 | 250.00 | 3.00 |
| 001.0011.110.1 | WR110 | 152.40 | 47.60 | 9.50 | 38.1 | 19.05 | 114.00 | 31.75 | 69.85 | 212.00 | 3.96 |
| 001.0012.110.2 | WH110 | 152.40 | 47.60 | 9.50 | 38.1 | 19.05 | 114.00 | 31.75 | 69.50 | 276.00 | 3.96 |
| 001.0013.132.1 | WR132 | 153.67 | 76.20 | 12.70 | 50.8 | 25.40 | 156.00 | 44.45 | 112.30 | 520.00 | 6.50 |
| 001.0014.132.2 | WH132 | 153.67 | 76.20 | 12.70 | 50.8 | 25.40 | 156.00 | 44.45 | 112.30 | 542.00 | 6.50 |
| 001.0015.150.1 | WR150 | 153.67 | 76.20 | 12.70 | 63.5 | 25.40 | 156.00 | 44.50 | 112.30 | 598.00 | 7.40 |
| 001.0016.150.2 | WH150 | 153.67 | 76.20 | 12.70 | 63.5 | 25.40 | 156.00 | 44.50 | 112.30 | 620.00 | 7.40 |
| 001.0017.155.1 | WR155 | 153.67 | 76.20 | 15.90 | 63.5 | 28.57 | 166.00 | 44.50 | 117.50 | 658.00 | 9.20 |
| 001.0018.155.2 | WH155 | 153.67 | 76.20 | 15.90 | 63.5 | 28.57 | 166.00 | 44.50 | 117.50 | 779.00 | 9.20 |
| 001.0019.157.1 | WR157 | 153.67 | 76.20 | 15.90 | 63.5 | 29.10 | 171.00 | 44.50 | 117.50 | 796.00 | 9.20 |
| 001.0020.157.2 | WH157 | 153.67 | 76.20 | 15.90 | 63.5 | 29.10 | 171.00 | 44.50 | 117.50 | 820.00 | 9.20 |
| Product Code | KASIN Size | Torque Rating (Nm) | Allow Speed RPM | A | B | C | D | F | H | J | M | GAP | Weight |
| 023.0205.10.10 | 1010 | 1,140 | 8,000 | 115.9 | 88.9 | 42.9 | 68.6 | 83.8 | 14.0 | 38.9 | 51 | 3 | 4.54 |
| 023.0206.10.15 | 1015 | 2,350 | 6,500 | 152.4 | 101.6 | 49.3 | 86.4 | 105.2 | 19.0 | 47.8 | 61 | 3 | 9.07 |
| 023.0207.10.20 | 1020 | 4,270 | 5,600 | 177.8 | 127.0 | 62.0 | 105.2 | 126.5 | 19.0 | 59.4 | 77 | 3 | 15.90 |
| 023.0208.10.25 | 1025 | 7,470 | 5,000 | 212.7 | 158.9 | 77.0 | 130.6 | 154.9 | 21.8 | 71.6 | 92 | 5 | 29.50 |
| 023.0209.10.30 | 1030 | 12,100 | 4,400 | 239.7 | 187.4 | 91.2 | 152.4 | 180.3 | 21.8 | 83.8 | 107 | 5 | 43.10 |
| 023.0210.10.35 | 1035 | 18,500 | 3,900 | 279.4 | 218.9 | 106.4 | 177.8 | 211.3 | 28.4 | 97.5 | 130 | 6 | 68.00 |
| 023.0211.10.40 | 1040 | 30,600 | 3,600 | 317.5 | 247.3 | 120.6 | 209.6 | 245.4 | 28.4 | 111.3 | 145 | 6 | 97.50 |
| 023.0212.10.45 | 1045 | 42,000 | 3,200 | 346.1 | 277.7 | 134.9 | 235.0 | 274.1 | 28.4 | 122.9 | 166 | 8 | 136.00 |
| 023.0213.10.50 | 1050 | 56,600 | 2,900 | 388.9 | 314.3 | 153.2 | 254.0 | 305.8 | 38.1 | 140.7 | 183 | 8 | 191.00 |
| 023.0214.10.55 | 1055 | 74,000 | 2,650 | 425.4 | 344.3 | 168.1 | 279.4 | 334.3 | 38.1 | 158.0 | 204 | 8 | 249.00 |
| 023.0215.10.60 | 1060 | 90,400 | 2,450 | 457.2 | 384.4 | 188.2 | 304.8 | 366.0 | 25.4 | 169.2 | 229 | 8 | 306.00 |
| 023.0216.10.70 | 1070 | 135,000 | 2,150 | 527.0 | 451.5 | 220.7 | 355.6 | 424.9 | 28.4 | 195.6 | 267 | 10 | 485.00 |
| Product Code | KASIN No. | Pitch | E | Sidebar | Height | PIN | Length | Dia | Width | Min.T/Strength | Weight |
| P | T | H | D | A | R | F | kN | kg/FT | |||
| 001.0001.078.1 | WR78 | 66.27 | 25.40 | 6.40 | 31.75 | 12.70 | 75.00 | 21.34 | 51.00 | 120.00 | 2.00 |
| 001.0002.078.2 | WH78 | 66.27 | 25.40 | 6.40 | 31.75 | 12.70 | 75.00 | 21.34 | 51.00 | 146.80 | 2.00 |
| 001.0003.082.1 | WR82 | 78.10 | 28.58 | 6.40 | 31.75 | 14.29 | 82.30 | 25.40 | 57.15 | 133.50 | 2.20 |
| 001.0004.082.2 | WH82 | 78.10 | 28.58 | 6.40 | 31.75 | 14.29 | 82.30 | 25.40 | 57.15 | 160.00 | 2.20 |
| 001.0005.124.1 | WR124 | 101.60 | 38.10 | 9.70 | 38.1 | 19.05 | 107.00 | 31.75 | 71.40 | 240.00 | 3.60 |
| 001.0006.124.2 | WH124 | 101.60 | 38.10 | 9.70 | 38.1 | 19.05 | 107.00 | 31.75 | 71.40 | 250.00 | 3.60 |
| 001.0007.111.1 | WR111 | 120.90 | 57.20 | 9.50 | 38.1 | 19.05 | 124.90 | 31.75 | 69.85 | 203.00 | 3.84 |
| 001.0008.111.2 | WH111 | 120.90 | 57.20 | 9.50 | 38.1 | 19.05 | 124.90 | 31.75 | 69.85 | 265.00 | 3.84 |
| 001.0009.106.1 | WR106 | 152.40 | 38.10 | 9.70 | 38.1 | 19.05 | 107.00 | 31.75 | 69.85 | 240.00 | 3.00 |
| 001.0010.106.2 | WH106 | 152.40 | 38.10 | 9.70 | 38.1 | 19.05 | 107.00 | 31.75 | 69.85 | 250.00 | 3.00 |
| 001.0011.110.1 | WR110 | 152.40 | 47.60 | 9.50 | 38.1 | 19.05 | 114.00 | 31.75 | 69.85 | 212.00 | 3.96 |
| 001.0012.110.2 | WH110 | 152.40 | 47.60 | 9.50 | 38.1 | 19.05 | 114.00 | 31.75 | 69.50 | 276.00 | 3.96 |
| 001.0013.132.1 | WR132 | 153.67 | 76.20 | 12.70 | 50.8 | 25.40 | 156.00 | 44.45 | 112.30 | 520.00 | 6.50 |
| 001.0014.132.2 | WH132 | 153.67 | 76.20 | 12.70 | 50.8 | 25.40 | 156.00 | 44.45 | 112.30 | 542.00 | 6.50 |
| 001.0015.150.1 | WR150 | 153.67 | 76.20 | 12.70 | 63.5 | 25.40 | 156.00 | 44.50 | 112.30 | 598.00 | 7.40 |
| 001.0016.150.2 | WH150 | 153.67 | 76.20 | 12.70 | 63.5 | 25.40 | 156.00 | 44.50 | 112.30 | 620.00 | 7.40 |
| 001.0017.155.1 | WR155 | 153.67 | 76.20 | 15.90 | 63.5 | 28.57 | 166.00 | 44.50 | 117.50 | 658.00 | 9.20 |
| 001.0018.155.2 | WH155 | 153.67 | 76.20 | 15.90 | 63.5 | 28.57 | 166.00 | 44.50 | 117.50 | 779.00 | 9.20 |
| 001.0019.157.1 | WR157 | 153.67 | 76.20 | 15.90 | 63.5 | 29.10 | 171.00 | 44.50 | 117.50 | 796.00 | 9.20 |
| 001.0020.157.2 | WH157 | 153.67 | 76.20 | 15.90 | 63.5 | 29.10 | 171.00 | 44.50 | 117.50 | 820.00 | 9.20 |
