In industrial transmission systems, couplings, as core basic components connecting power sources (such as motors) with actuators, transmitting torque and compensating for relative displacement, their performance parameters directly determine the operational stability, transmission efficiency and full-life-cycle maintenance costs of the entire transmission system. Among various coupling products, Omega couplings, with their unique structural design, excellent material performance and wide working condition adaptability, have become benchmark products in the field of elastic split-type tire couplings after 40 years of market verification, and are widely used in various harsh industrial scenarios around the world. This article will deeply analyze the technical characteristics, core advantages, typical application scenarios and scientific selection methods of Omega couplings, providing industrial enterprises with a reference for accurate and efficient transmission solutions.

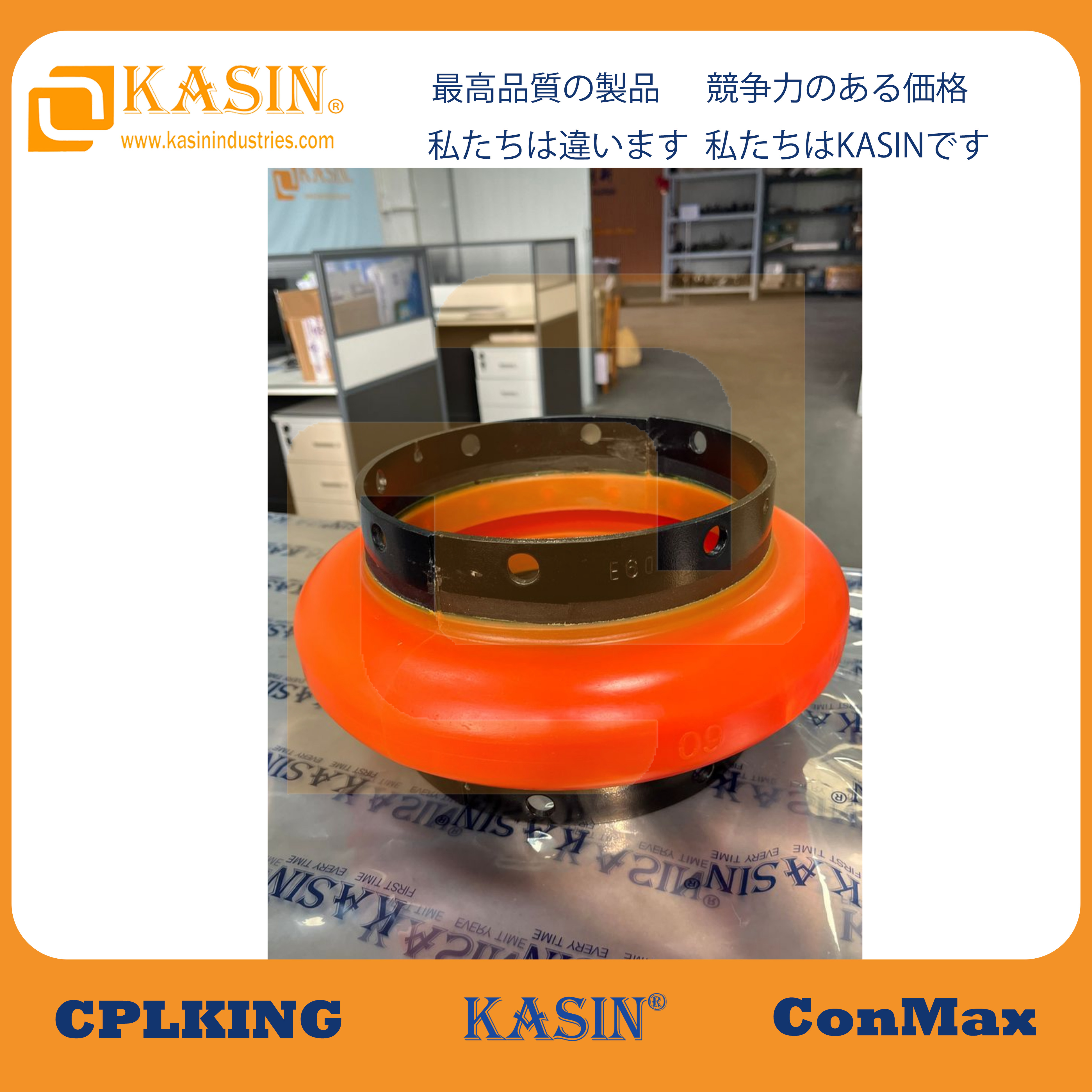

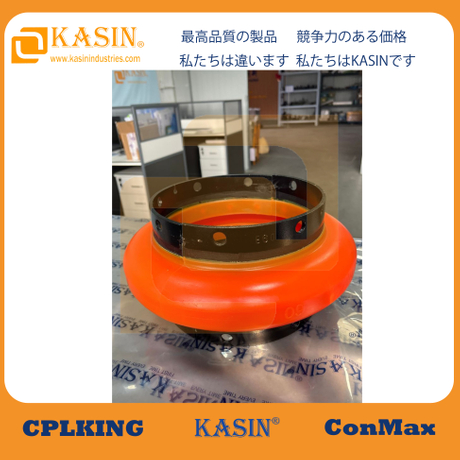

Omega couplings belong to maintenance-free, flexible split-type tire couplings, with exclusive Ω-shaped elastic elements as the core technical carrier, precision-machined from custom-formulated polyurethane materials. Compared with traditional rubber-based couplings, they have significant technical advantages in key indicators such as torque transmission accuracy, vibration damping performance, and installation and maintenance convenience.
Compared with conventional couplings, the core design positioning of Omega couplings focuses on three dimensions: "efficient and accurate transmission, active equipment protection, and reduced comprehensive costs". It can not only achieve stable torque transmission, but also effectively buffer the impact load generated by equipment start-stop and working condition fluctuations through its own flexible characteristics, absorb vibration energy during system operation, reduce the loss of key components such as motors, bearings and shafts caused by vibration, and extend the service life of the entire transmission system; at the same time, its split-type structural design and maintenance-free characteristics greatly simplify the installation process, reduce maintenance workload, and help industrial production achieve efficient and low-cost operation.
II. Core Technical Advantages of Omega Couplings: Four Major Core Breakthroughs to Solve Pain Points in the Industrial Transmission Industry
The custom-formulated polyurethane material used in Omega couplings has tear strength, wear resistance and peak torque bearing capacity far exceeding those of traditional rubber materials, enabling stable transmission of larger torque in a smaller structural size. This feature allows enterprises to select smaller-sized coupling products, which not only saves equipment installation space, but also reduces coupling procurement costs and overall system maintenance expenses, effectively optimizing the total cost of ownership (TCO) of equipment. In addition, its elastic elements have undergone strict weight matching and dynamic balance calibration, meeting ISO G16 (1504 rpm) and AGMA Grade 8 dynamic balance standards, avoiding early equipment wear, excessive vibration and other problems caused by coupling dynamic balance deviations from the source.

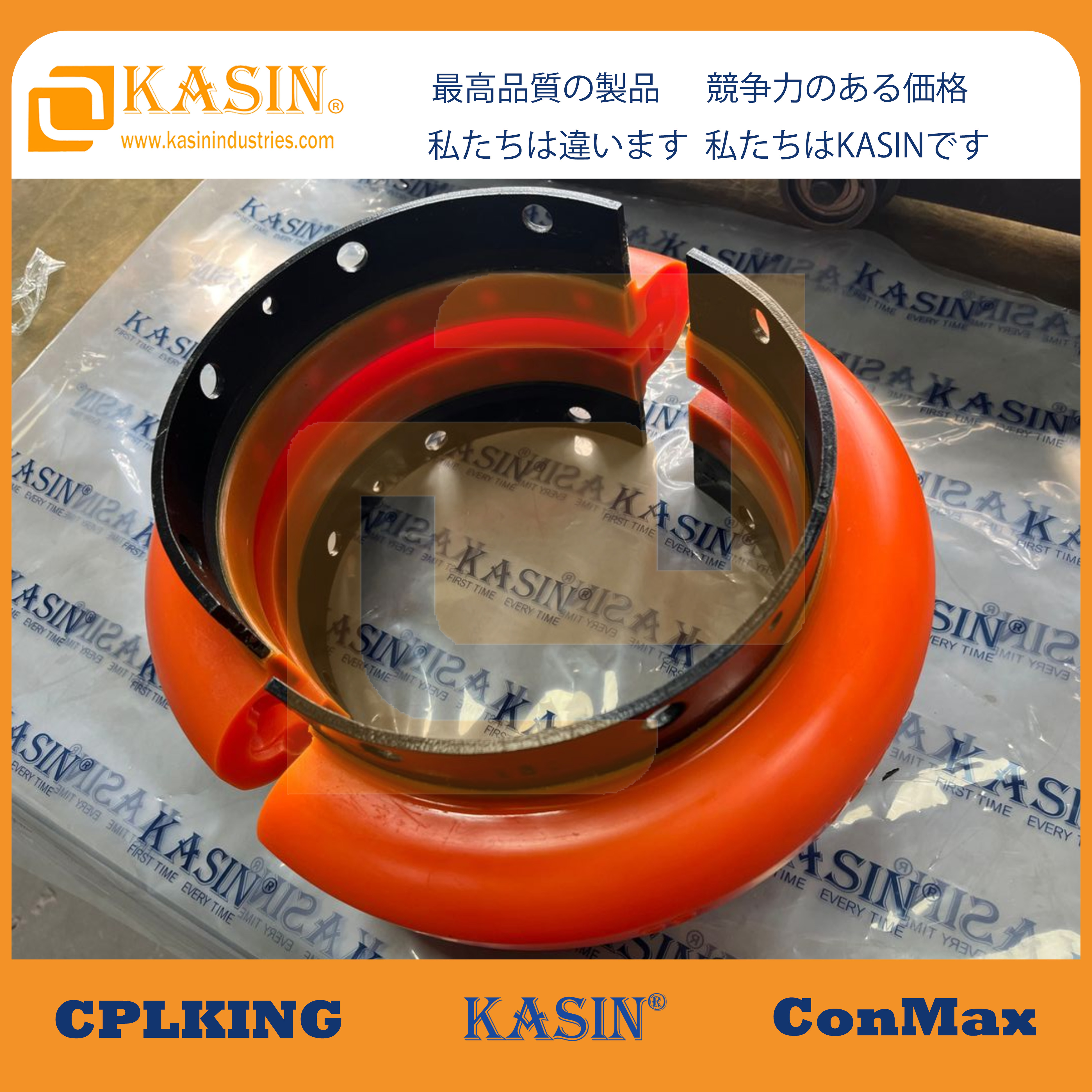

The split elastic element structure is one of the core competitiveness of Omega couplings. Adopting a modular design, during installation and elastic element replacement, there is no need to disassemble the hub, move the motor and actuator, or re-perform shaft alignment operations. This design has strong adaptability to industrial scenarios with narrow installation space and difficult equipment disassembly; at the same time, the radial bolt layout is more convenient for operation in narrow areas compared with the traditional axial bolt design, further improving the convenience and efficiency of installation and maintenance. Whether it is initial installation and commissioning, or later elastic element replacement, it can greatly shorten working hours, reduce production downtime losses, and improve equipment availability.
Full Specification Coverage: Covering 16 metric and imperial standard sizes, it can adapt to transmission systems of different power levels and speed ranges, meeting the torque transmission needs of various equipment

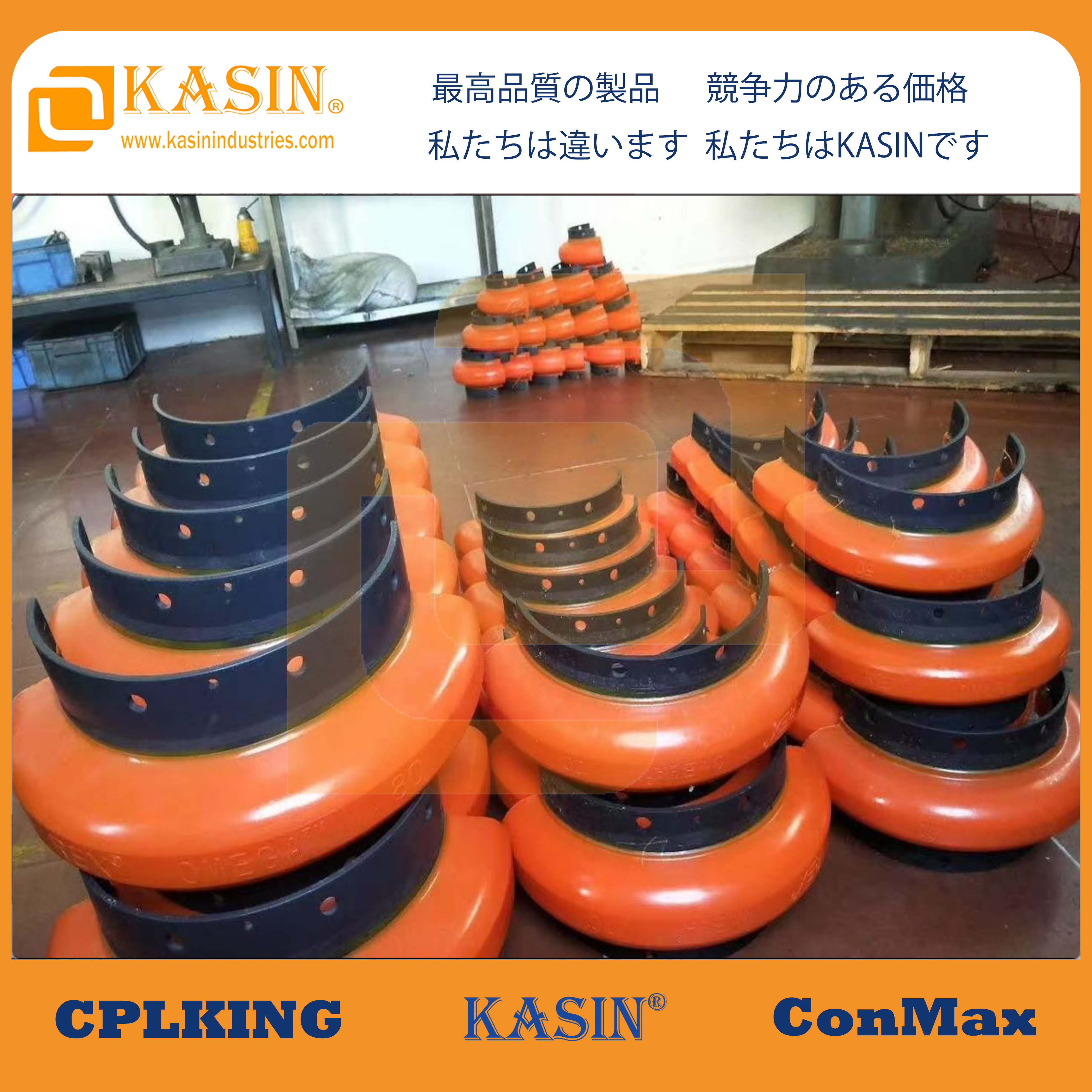

Differentiated Materials: The general-purpose orange model is suitable for conventional industrial working conditions; the heavy-duty yellow (HDY) model has a torque capacity 25% higher than the general-purpose model, suitable for heavy-duty and high-frequency start-stop scenarios; the green hydrolysis-stable model (HSU) is specially designed for high-temperature and high-humidity working conditions, which can maintain stable performance in acid-base medium environments for a long time, and is not easy to age or hydrolyze
Anti-Corrosion Customization: According to working condition requirements, anti-corrosion coated steel boots, stainless steel hardware and hubs can be selected to adapt to corrosive environments such as chemical industry, marine and salt spray, extending the service life of couplings
High Misalignment Compensation: It has excellent parallel misalignment, angular misalignment and axial displacement compensation capabilities, which can adjust the inevitable shaft alignment deviations during equipment operation within the allowable range, with small reaction force, effectively protecting equipment bearings and shafts, and reducing the probability of equipment failure.
Fluid Machinery Field: Pumps, compressors, fans and other equipment can effectively buffer the impact load generated by equipment start-stop and working condition fluctuations, adapt to torque fluctuations under different working conditions, extend equipment service life, and ensure continuous and stable operation of equipment;
Processing and Manufacturing Field: Mixers, crushers, conveyors, machine tools and other equipment can withstand the impact load caused by frequent start-stop, absorb vibration energy during equipment operation, and ensure processing accuracy and production continuity;
Heating, Ventilation and Air Conditioning (HVAC) Field: Central air conditioning chilled water pumps, cooling tower fans and other equipment. Taking the application of the central air conditioning system of Shanghai Tower as an example, it adopts Omega couplings to achieve 2000Nm torque transmission, operating continuously and stably for 5 years without failure. Compared with traditional couplings, the maintenance cost is reduced by more than 60%;
Food and Pharmaceutical Field: Food processing equipment, pharmaceutical mixing equipment, clean conveying equipment, etc. The maintenance-free and oil-pollution-free characteristics can accurately adapt to the strict production requirements of clean workshops and ensure product quality;
Building Materials and Chemical Industry Field: Building materials factory fans, chemical reactors, corrosive medium conveying equipment, etc. Anti-corrosion and high-temperature models can effectively adapt to harsh working conditions such as corrosion, high temperature and high humidity, ensure stable operation of the transmission system, and reduce equipment maintenance costs.
First, it is necessary to accurately calculate the rated working torque and peak torque of the transmission system (fully considering the impact load generated by equipment start-stop, braking and working condition fluctuations). The rated torque of the selected Omega coupling shall not be less than 1.3 times the rated working torque to ensure that it can stably bear the peak torque impact and avoid coupling overload damage; at the same time, the maximum allowable speed of the coupling shall be higher than 80% of the actual working speed of the system, leaving sufficient safety margin to avoid excessive vibration, component wear and other problems caused by dynamic balance deviation during high-speed operation.
It is necessary to select suitable materials and specifications according to the actual working environment and working condition characteristics of the equipment: the general-purpose orange model can be selected for conventional industrial working conditions; the yellow (HDY) heavy-duty model is recommended for heavy-duty and high-frequency start-stop working conditions; the green (HSU) hydrolysis-stable model is required for special working conditions such as high temperature, high humidity and acid-base medium; for working conditions with strong corrosion, stainless steel hubs and anti-corrosion coated accessories can be additionally selected to improve the anti-corrosion performance of the coupling. At the same time, it is necessary to confirm whether the misalignment compensation capacity of the coupling meets the actual needs in combination with the shaft misalignment of the equipment, so as to avoid equipment failures caused by insufficient misalignment compensation.
It is necessary to select coupling products of corresponding specifications according to the size limit of the equipment installation space; for scenarios with narrow installation space, priority should be given to Omega couplings with radial bolt design, which are convenient for installation, commissioning and later maintenance. In addition, its interchangeable hub design can realize flexible switching between close connection and spacing connection, which can effectively reduce the inventory cost of spare parts for enterprises; the hub material can be selected as carbon steel, 303-304 stainless steel or electroless nickel plating material according to equipment needs, adapting to different equipment installation and working condition requirements.
Whether your equipment is used in general fluid machinery, precision processing and manufacturing, or harsh working conditions such as high temperature and corrosion, Omega couplings can provide accurately adapted transmission solutions. If you need to know more about the specification parameters, technical details and selection schemes of Omega couplings, or have customized transmission needs, please feel free to contact our technical team. We will provide you with one-on-one professional technical support to help your industrial production achieve efficient, stable and low-cost operation.
