Caterpillar Drive Unit for Drop Forged Rivetless Chain of Conveyor Chain Extreme-Duty Performance


Availability:

Quantity:

Inquire Add to Basket

Model:
X345 X458 X678 S348 S458 S678 P100 P160
Brand:
Kasin
Code:
7315119000

Technical Specifications at a Glance:

Materials: High-Carbon Steel, Alloy Steel, Heat-Treated options.

Process: Closed-Die Drop Forging.

Finish: As-Forged, Shot-Blasted, or Coated (Galvanized, Painted).

Attachments: Full range of standard and custom-designed attachments (SS, K, D styles, etc.).

Standards: Manufactured to meet or exceed industry specifications for dimensional consistency and load capacity.

Product Description

The drive unit is the power core of a drop forged rivetless chain conveyor. In extreme-duty service, it must deliver high torque reliably under heavy loads, long runs, and harsh environments.

Two Drive Types

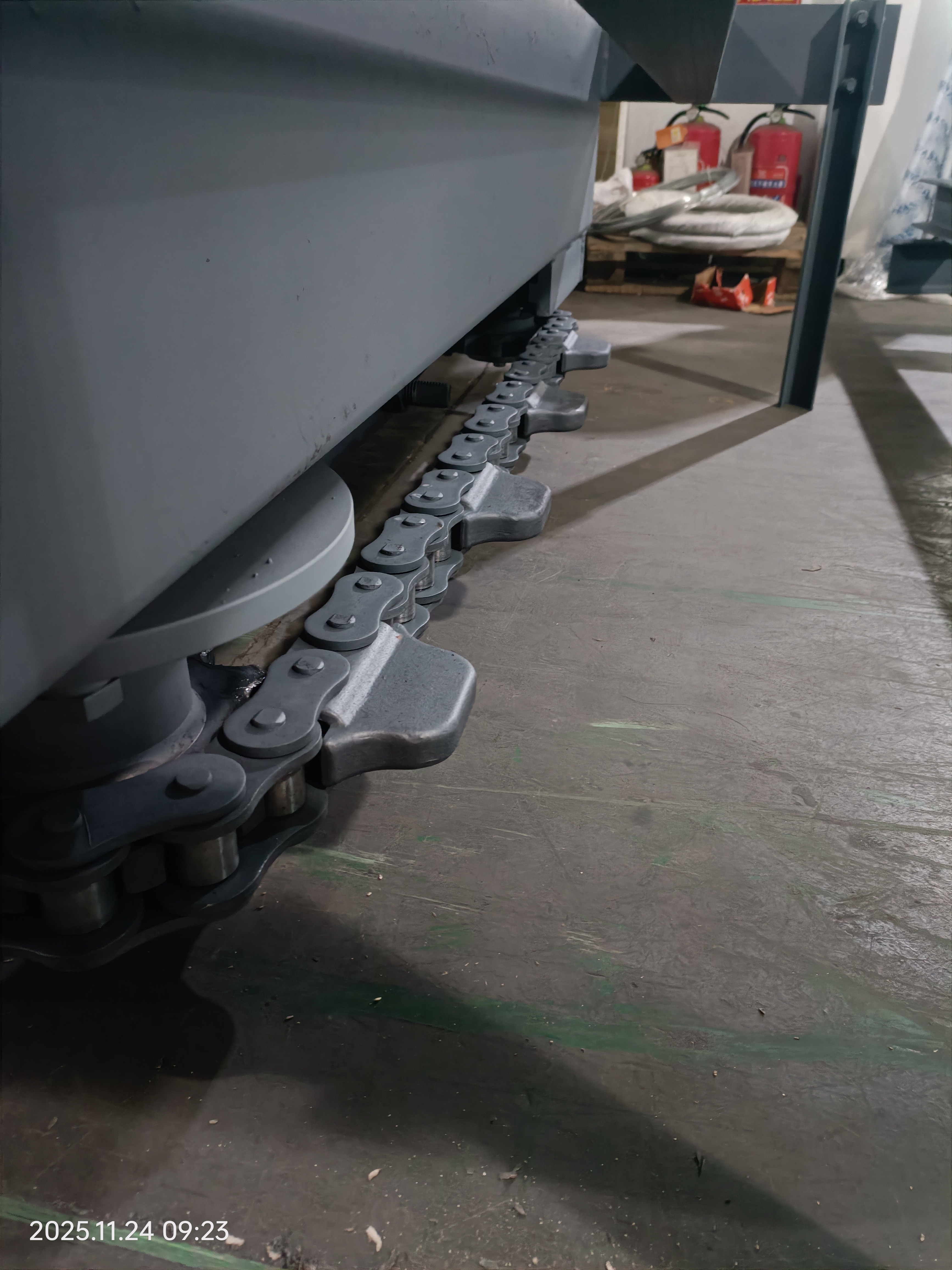

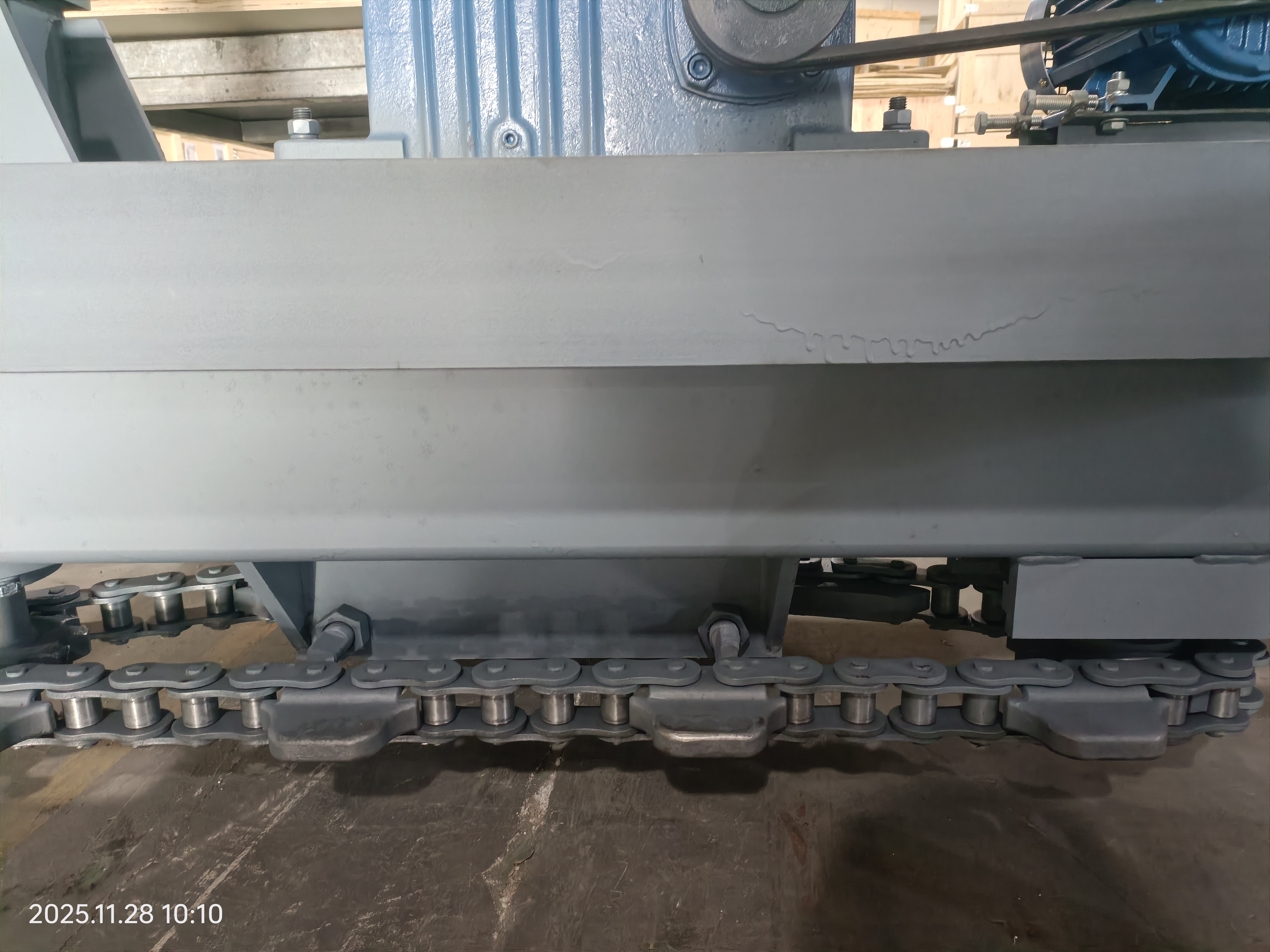

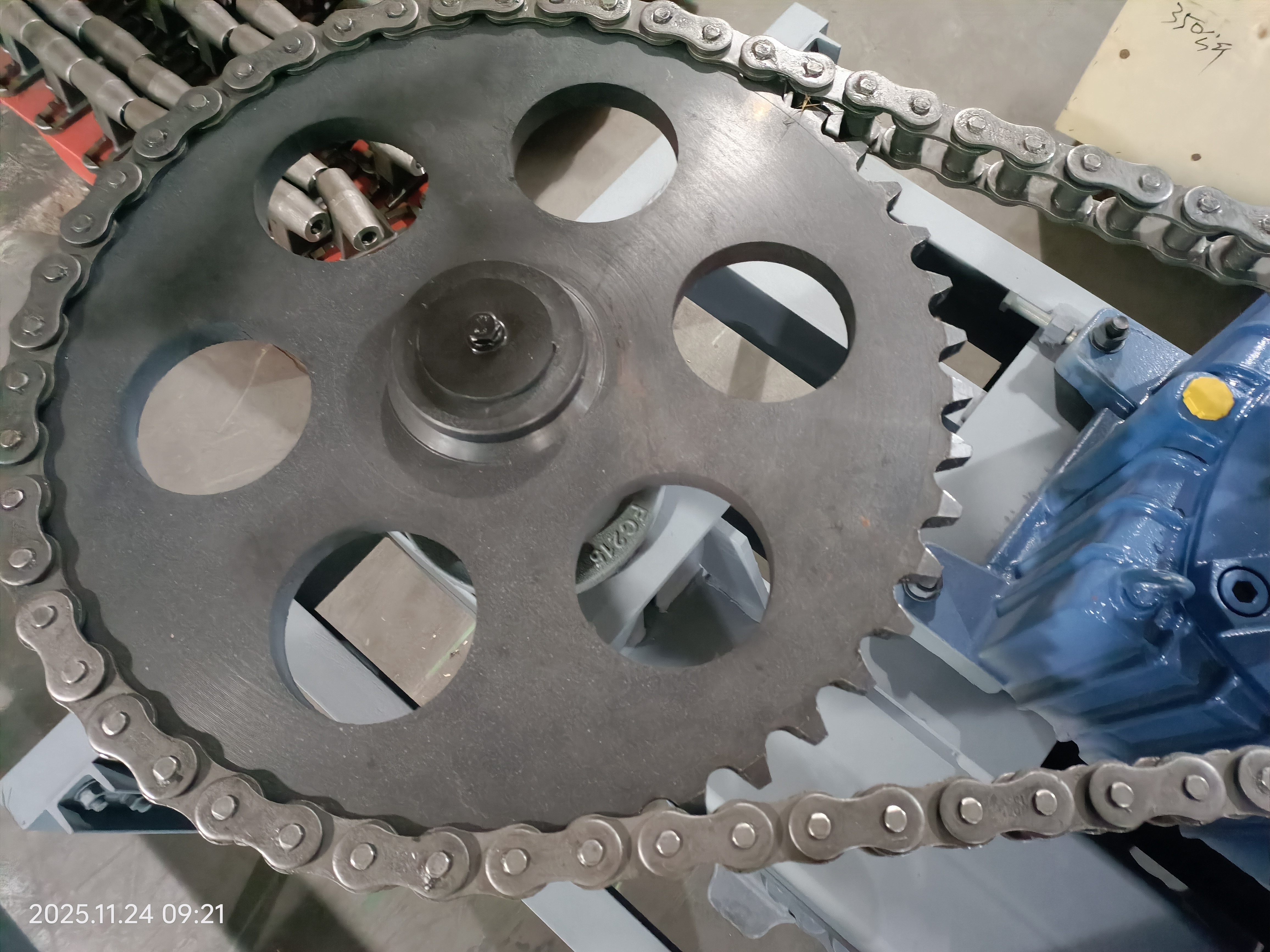

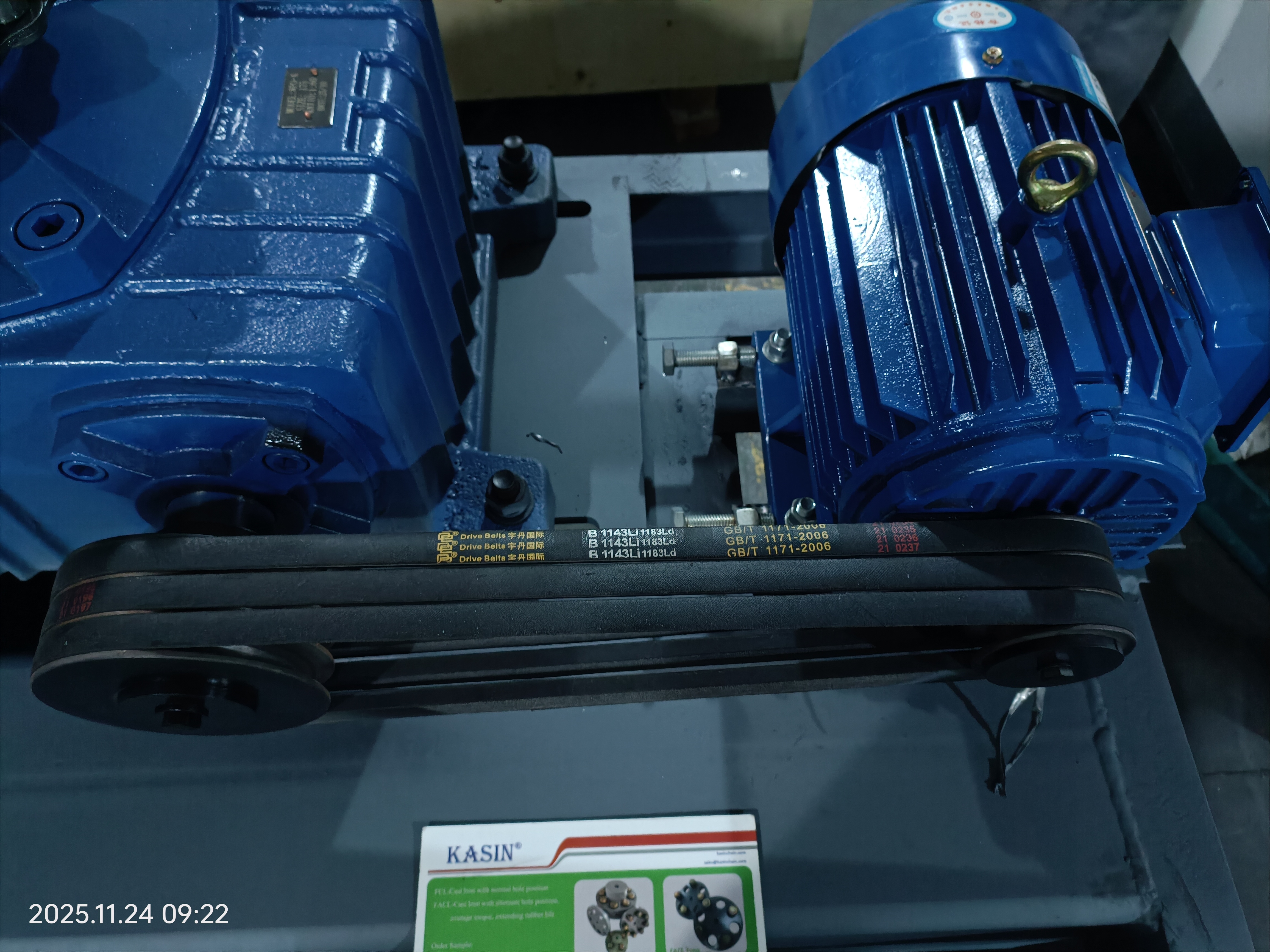

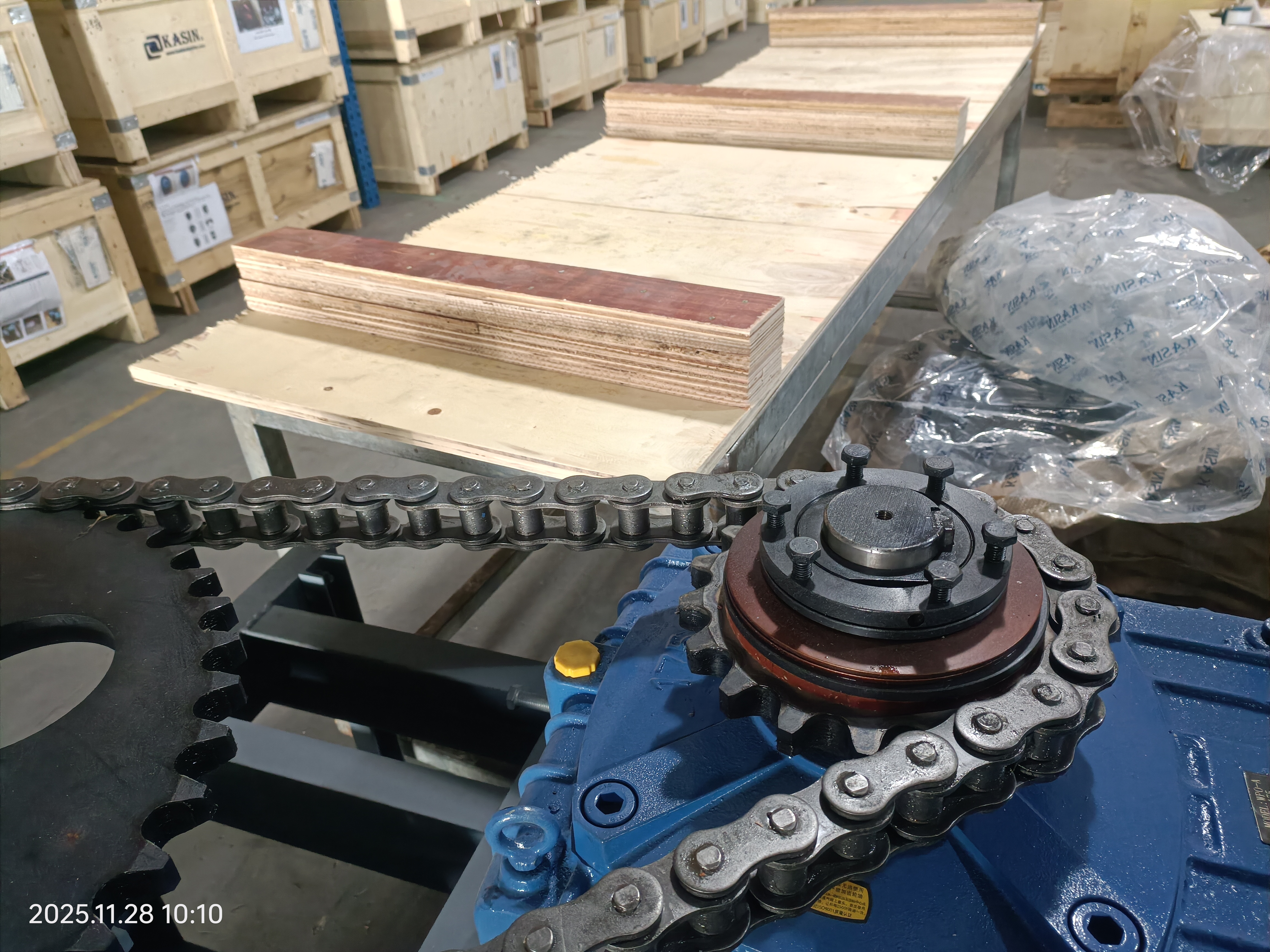

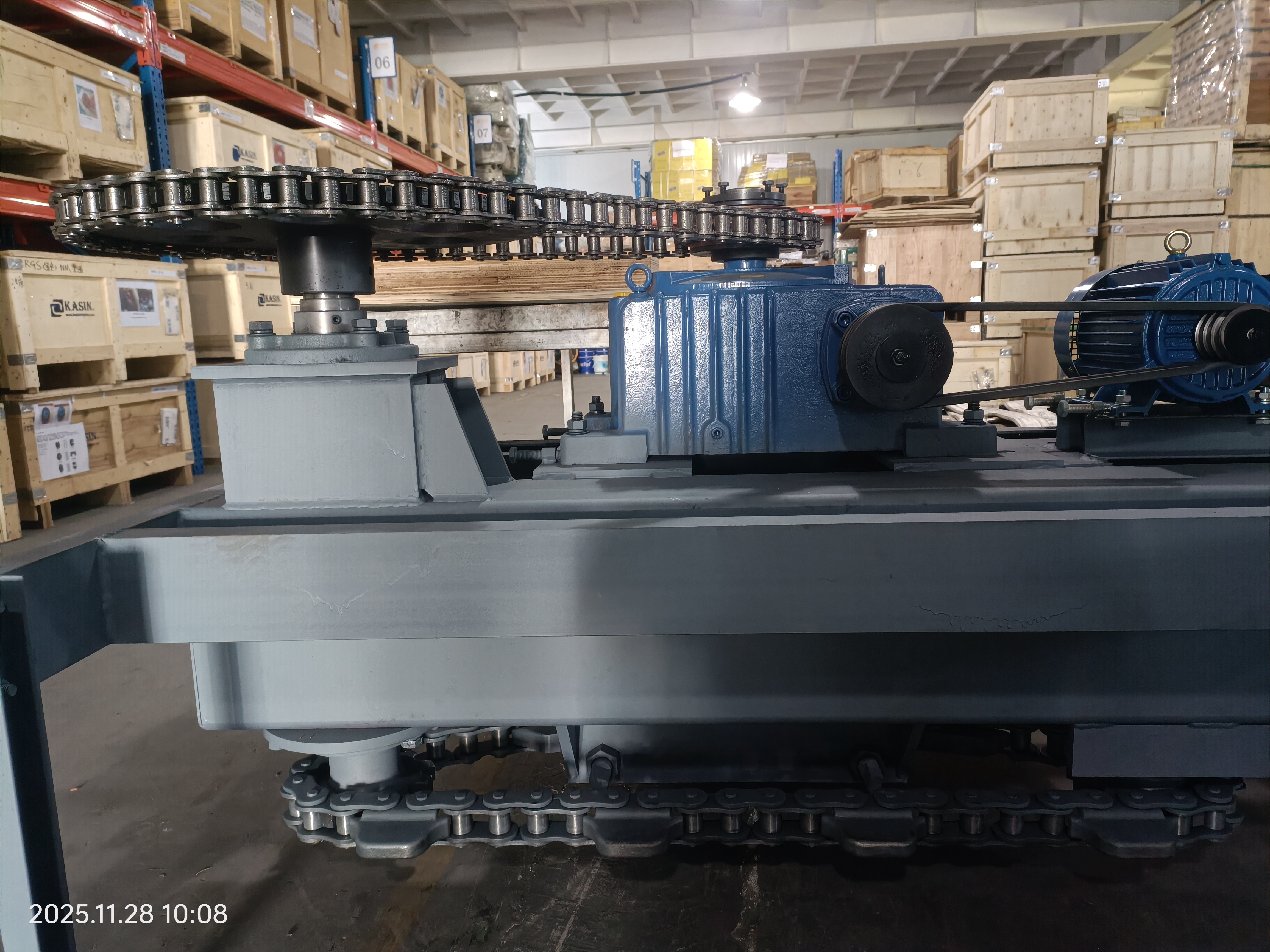

Caterpillar (Track) Drive: Mounted on a straight track section, engages the chain via a powered cat chain with drive dogs. Best for long runs and high chain pull; more energy-efficient than sprocket drives.

Sprocket Drive: Mounted at a horizontal turn, uses a large sprocket to engage the chain directly. Requires at least 90° wrap. Drawback: high torque demand, needing a larger reducer.

Common specifications:

Track Size	Chain	Max Pull	Dog Spacing
3"	X-348	3,000 lbs	12"
4"	X-458	4,000 lbs	8"
6"	X-678	5,000 lbs	12"

Extreme-Duty Design Features

Shear Hub Protection: Shear pin fails first during a jam, protecting gearbox, motor, and chain.
Heavy-Duty Cat Chain: Solid forged, induction-hardened drive dogs; average ultimate strength up to 58,000 lbs.
Multi-Drive Configurations: For high pull or long systems, with backup drives for failover.
Variable Speed Control: VFD with ~10:1 turndown ratio.
Frame Options: Right/left hand, floating/fixed/inverted styles.

Chain Types

X-Type: All components heat-treated, flexible, carbon or alloy steel.
H-Type: Bar loop chain with flat steel sidebars for weld-on attachments.

Selection Checklist

Calculate chain pull from total load, friction, and incline.
Choose caterpillar for long runs/high pull; sprocket for turn installations.
Specify shear hub protection.
Consider multi-drive when pull exceeds 5,000 lbs or multiple elevation changes exist.
Match drive unit to chain number (X-348, X-458, X-678, etc.).

For application-specific sizing, contact the us with your chain pull, speed, and layout requirements.
