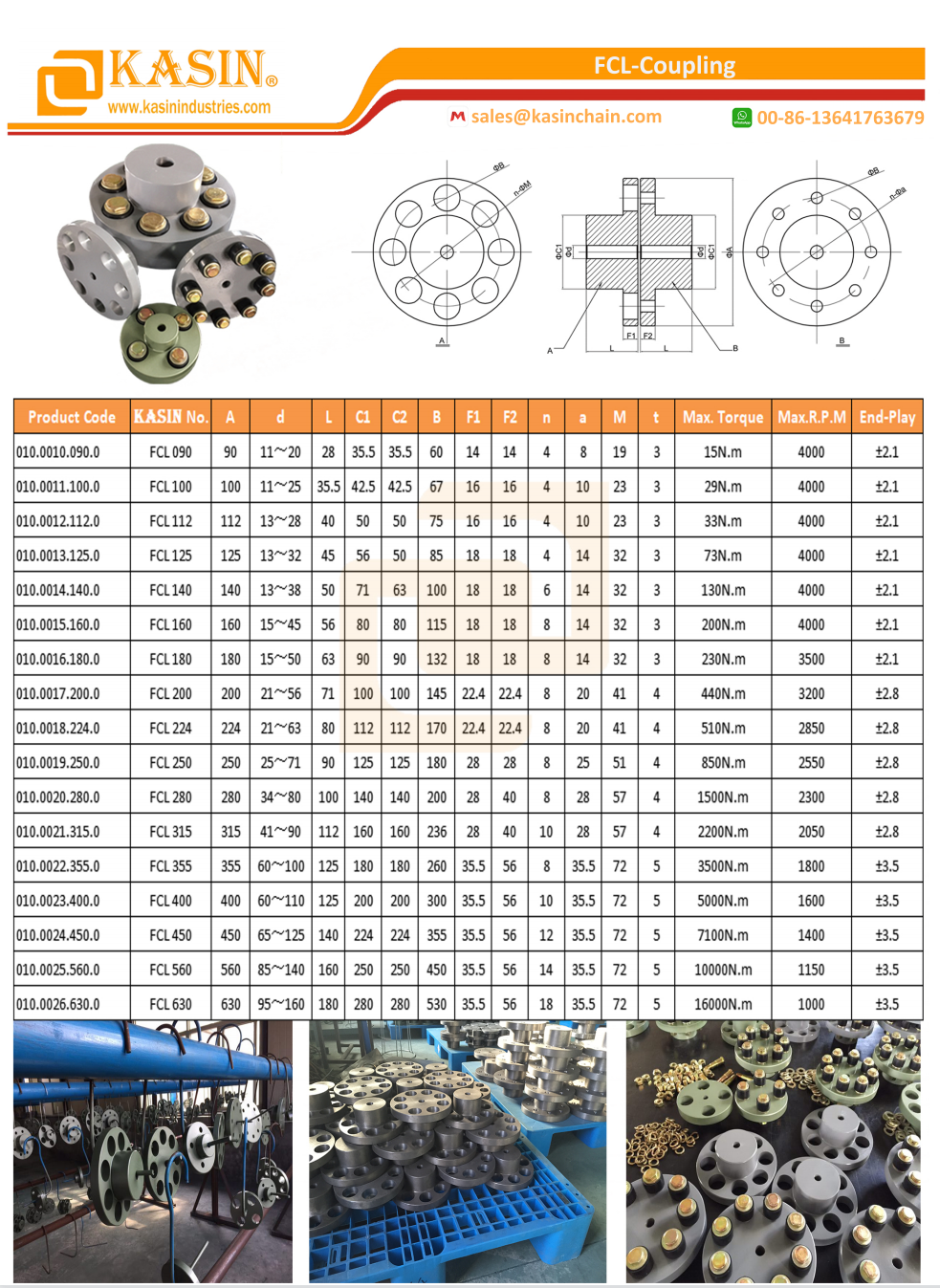

FCL Coupling
KASIN
FCL KASIN COUPLING
The kasin couplings are used as com- pensation couplings everywhere where an absolutely reliable torque transfer is required.
FCL couplings cover with their types a wide range of uses.
With a total of 26 sizes, couplings are available for torques from 200 to 1,300,000 Nm.
The coupling halves of the type WN consist of grey cast iron.
With the WS type of steel it is possible to use the coupling with high speeds.
With the convex elastic elements which can be moved in the holes – the buffers – it is possible to compensate for the shaft offsets in agular, radial and axial direction.
THE KSAIN couplings damp torque impacts and offer the possibility of shifting critical speeds.
THE FCL couplings are fail-safe up to the fracture moment of the metal parts, which is a multiple of the permissible impact moment, and thus offers the greatest possible operational safety.
KASIN FLC couplings can be used for both directions of rotation and are also suitable for reversing operation.
The buffers can be expected to have a long life with correct design of the FLC coupling and correct alignment of the assembly.
The kasin have 2 TYPE > WN and WS
A large number of applications already created and tried are available for this.
Our Projects Department would be pleased to advise you.
FCL couplings have proven themselves over decades in all areas of mechanical engineering, especially in the case of heavy-duty drives, as an absolutely reliable and practically maintenance-free machine element.
TECHNICAL DETAILS
Perfect transfer of the torque and trouble-free functioning are only guaranteed when original kasin FCL buffers are used.
The arrangement of the coupling parts of the types WN and WS on the shaft ends to be connected is discretionary.
Both horizontal and vertical installation is possible.
The kasin FCL couplings are normally fitted with a feather key groove according to DIN 6885 part 1 and set screw. Design with wedge groove according to DIN 6886, tightening from inside of hub, is possible. Care must be taken here to ensure that the maximum allowable holes only amount to 60% of the maximum allowable holes with key feather groove according to DIN 6885 part 1.
Rotating parts must be secured by the purchaser to prevent un- intentional contact. When products are supplied to other coun- tries the safety regulations applying there must be observed.
The shaft ends to be connected must be stored immediately in front of and behind the coupling.
We are at your service for design to DIN 740 part 2 and for vibration calculations. Vibration calculations can also be ordered from Engineering Service.
With respect to the installation and commissioning of FCL KASIN couplings the installation and operating instructions must be observed.
