This project is an overhead hanging conveying system for denim garment production. The customer needed an automated hanging transport line for denim fabrics and finished jeans during dyeing and post finishing procedures. In the early trial run phase, oil dripping occurred from the downward opening track, which brought risks of fabric contamination. We optimized the track structure to solve this field issue.
Textile & Denim Garment Industry
Overhead hanging conveying for denim garments and semi finished textile products. Realize hanging transfer between dyeing, washing and finishing processes, and temporary hanging storage of work in progress goods.
1. Suspended conveying to save precious workshop floor space.
2. Avoid scratching or staining denim fabric during transportation.
3. Adapt to high humid working environment of dyeing & washing workshop for long time continuous operation.
4. Prevent oil leakage / dripping onto garments to avoid product scrap loss.
5. Custom track layout matching existing production workflow.

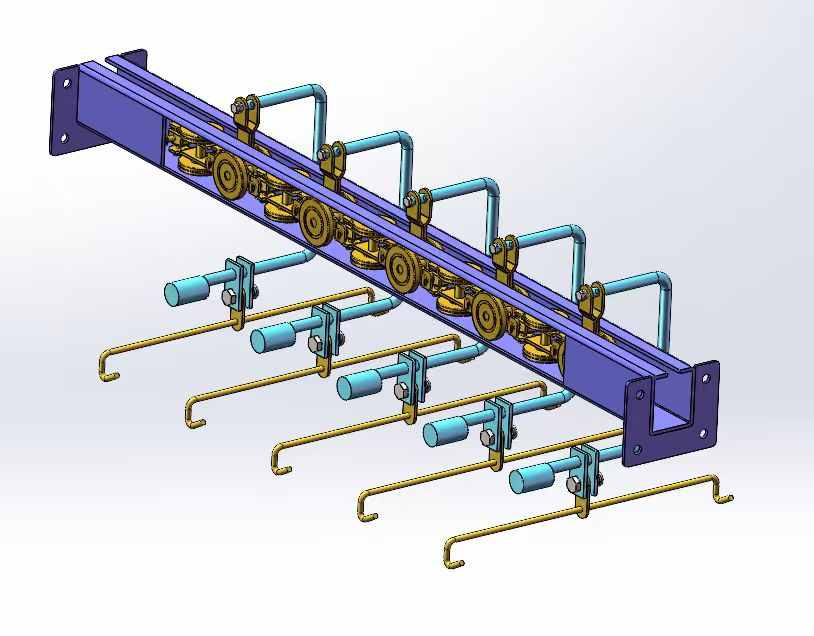

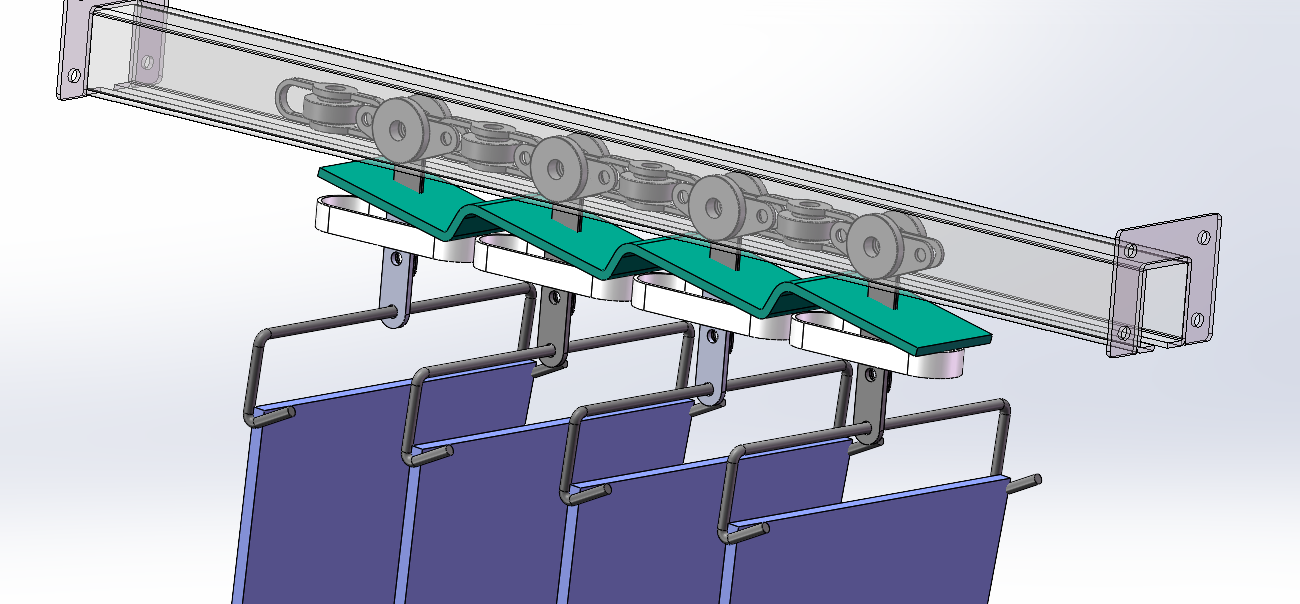

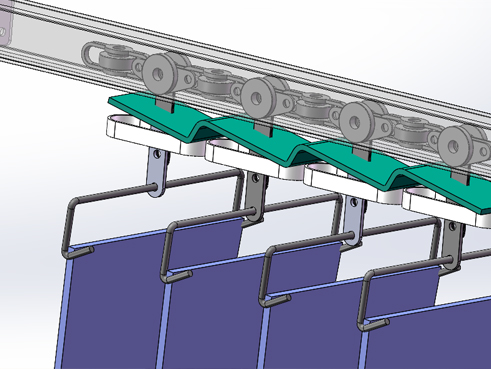

Adopt overhead hanging conveyor system for textile production. During commissioning, we found oil dripping risk caused by downward opening track. We modified and switched to upward opening track structure, which perfectly eliminated oil dripping onto denim fabrics. All contact components are optimized to prevent fabric scratching. The whole system is adapted to humid workshop conditions. We also deliver after sales quality assurance and maintenance guidance for stable long term operation.
Overhead hanging conveyor chains Upward opening customized track sections Track turning units Hanging trolleys for garment transport Anti wear spare parts
↓
Upward opening track completely solved the oil dripping problem, effectively avoiding fabric contamination and product waste. Overhead hanging layout greatly saves workshop floor area. Smooth transport without scratching denim garments, fits dyeing washing finishing whole process production. Stable performance under long term high humidity operating conditions. Reduced rejection rate and brought tangible economic benefits for customer.
