Conveyor System for Cylinder Painting & Coating Line

● Project Background

The customer needed an automated continuous conveying system integrated with painting and coating stations for cylindrical workpieces. The original manual handling led to unstable coating thickness, low throughput and high labor cost. They looked for a reliable overhead conveyor solution to connect loading, pre-treatment, painting, curing and unloading stations.

● Industry

Heavy equipment / Hydraulic cylinder manufacturing industry

● Application

Automated transporting of hydraulic cylinders through full painting & coating processes, including loading, surface pre-treatment, spraying, oven curing and finished part unloading.

● Customer Requirement

1. Stable smooth running for heavy cylindrical parts;

2. Consistent workpiece rotation during spraying to achieve uniform coating;

3. Heat-resistant design to adapt curing oven high temperature environment;

4. Precise speed control to match painting cycle;

5. Low maintenance and long service life for 24h continuous operation.

● Kasin Solution

We designed a customized overhead power & free conveyor system. Special rotating fixtures were fitted to hold cylinders and rotate workpieces evenly in the spray booth. The track and trolley adopted heat-resistant structure and high-temperature lubrication. Adjustable line speed was implemented to coordinate with spraying and curing procedure.

● Product Supplied

Power & free overhead conveyor track, trolley assemblies, rotating jigs for cylinders, drive & tension units, chain, high-temperature grease, control system and spare parts.

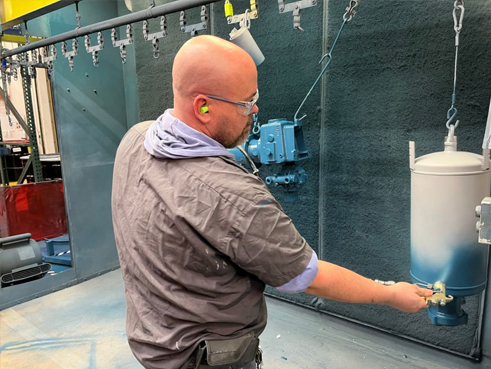

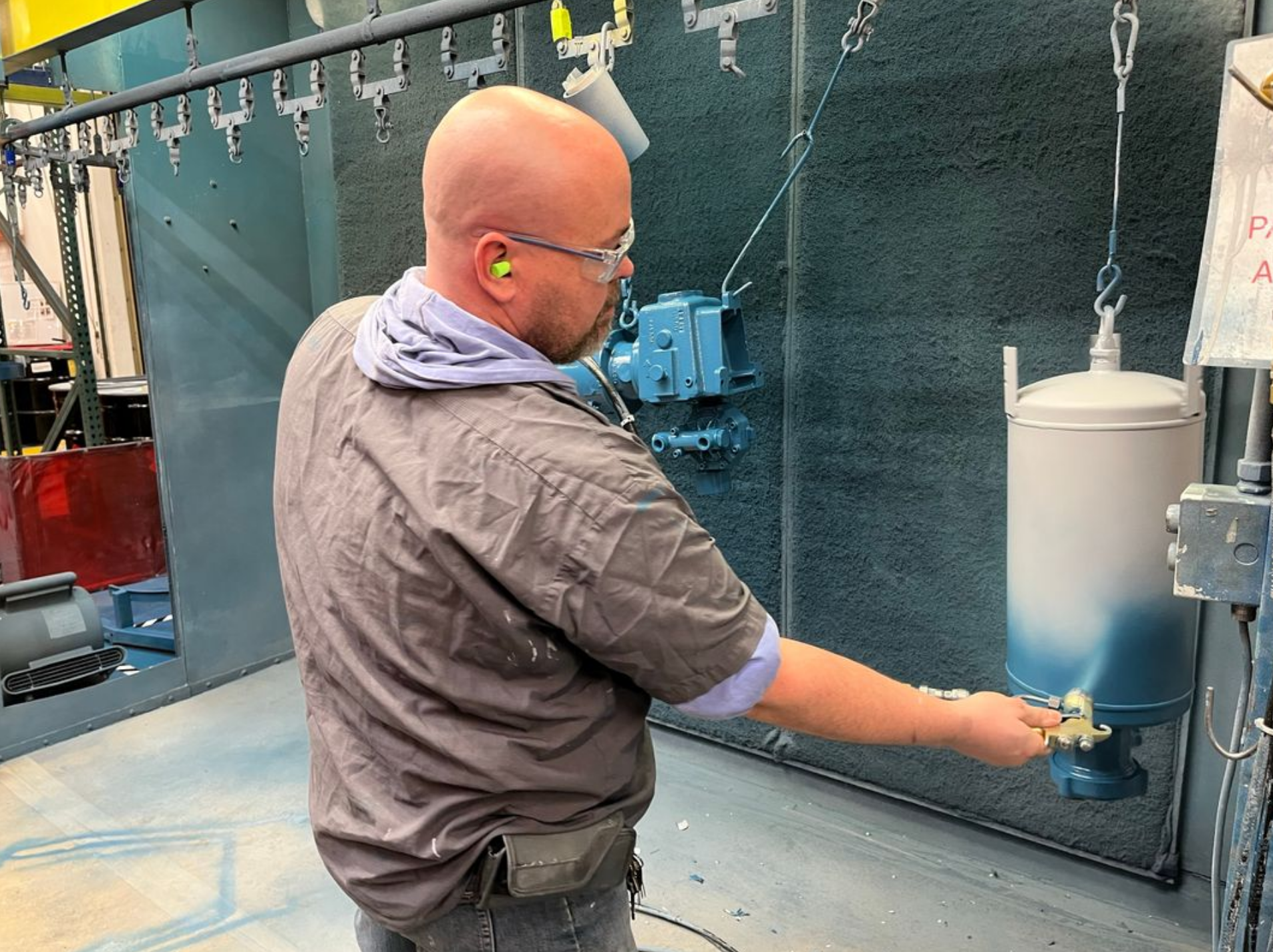

● Project Photos

● Result / Project Value

Automated conveying replaced manual transfer. Uniform coating quality is guaranteed by rotary fixtures. Production capacity increased greatly while labor cost and defective rate reduced. The system runs steadily under high-temperature curing condition with less downtime.
