Shaft and Sprocket for Drop Forged Rivetless Chain Heavy-Duty Conveyor Drive Components

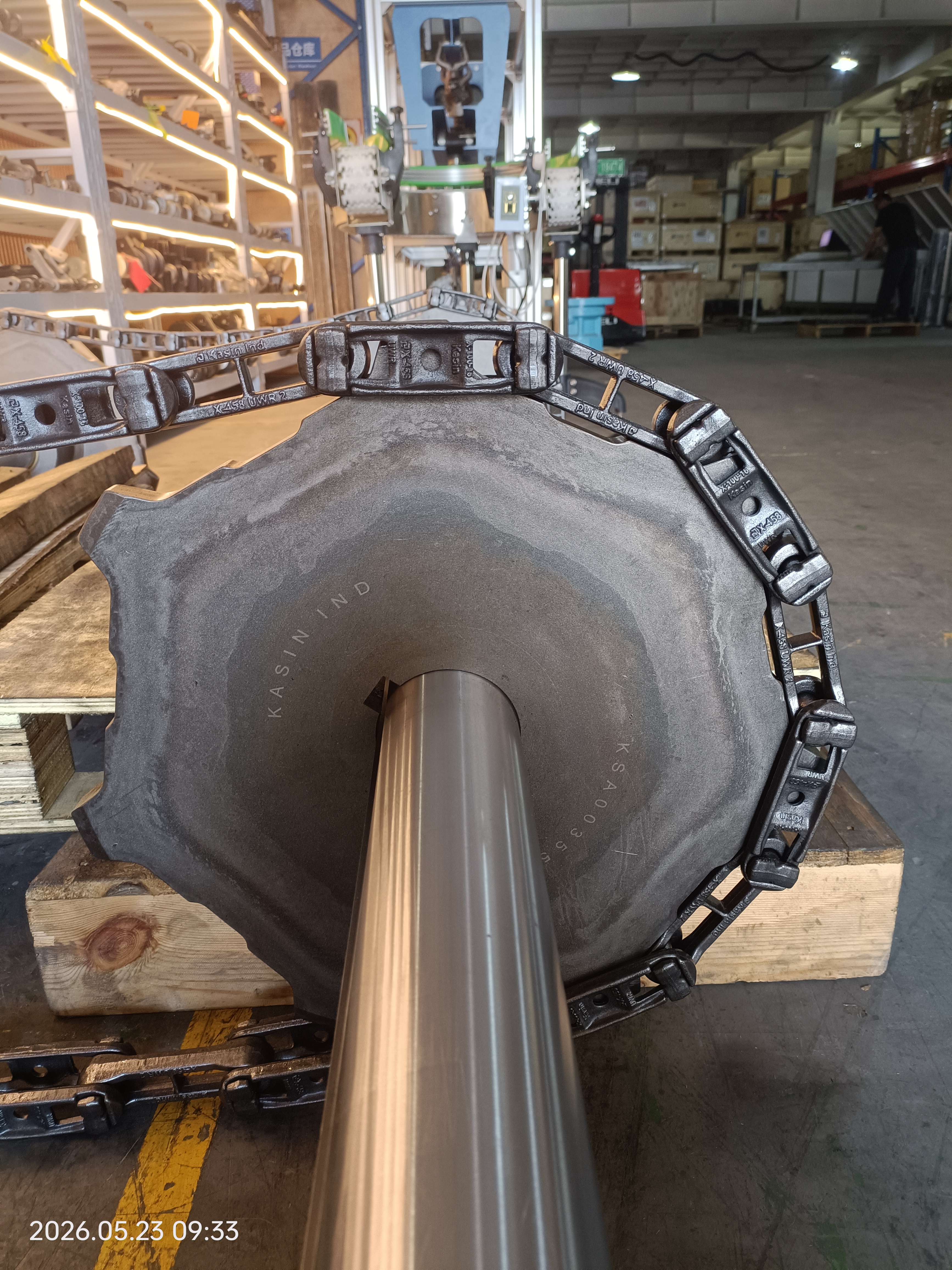

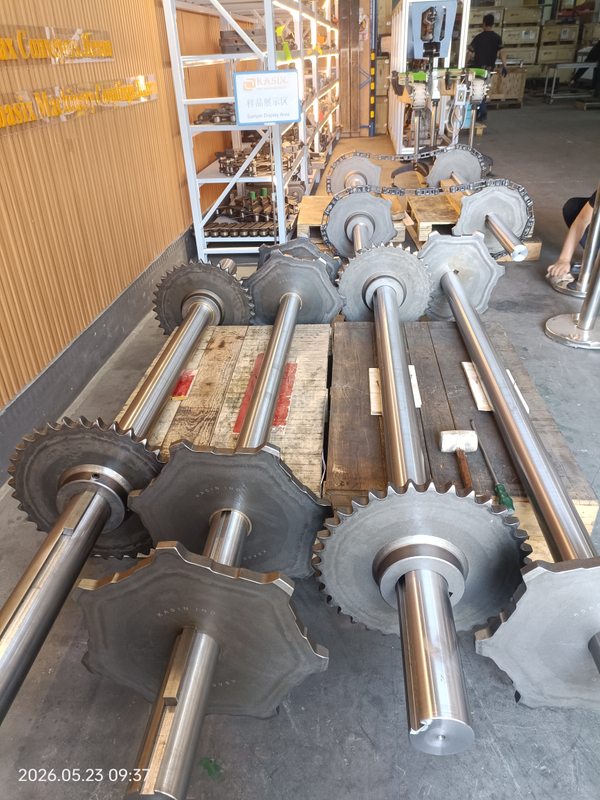

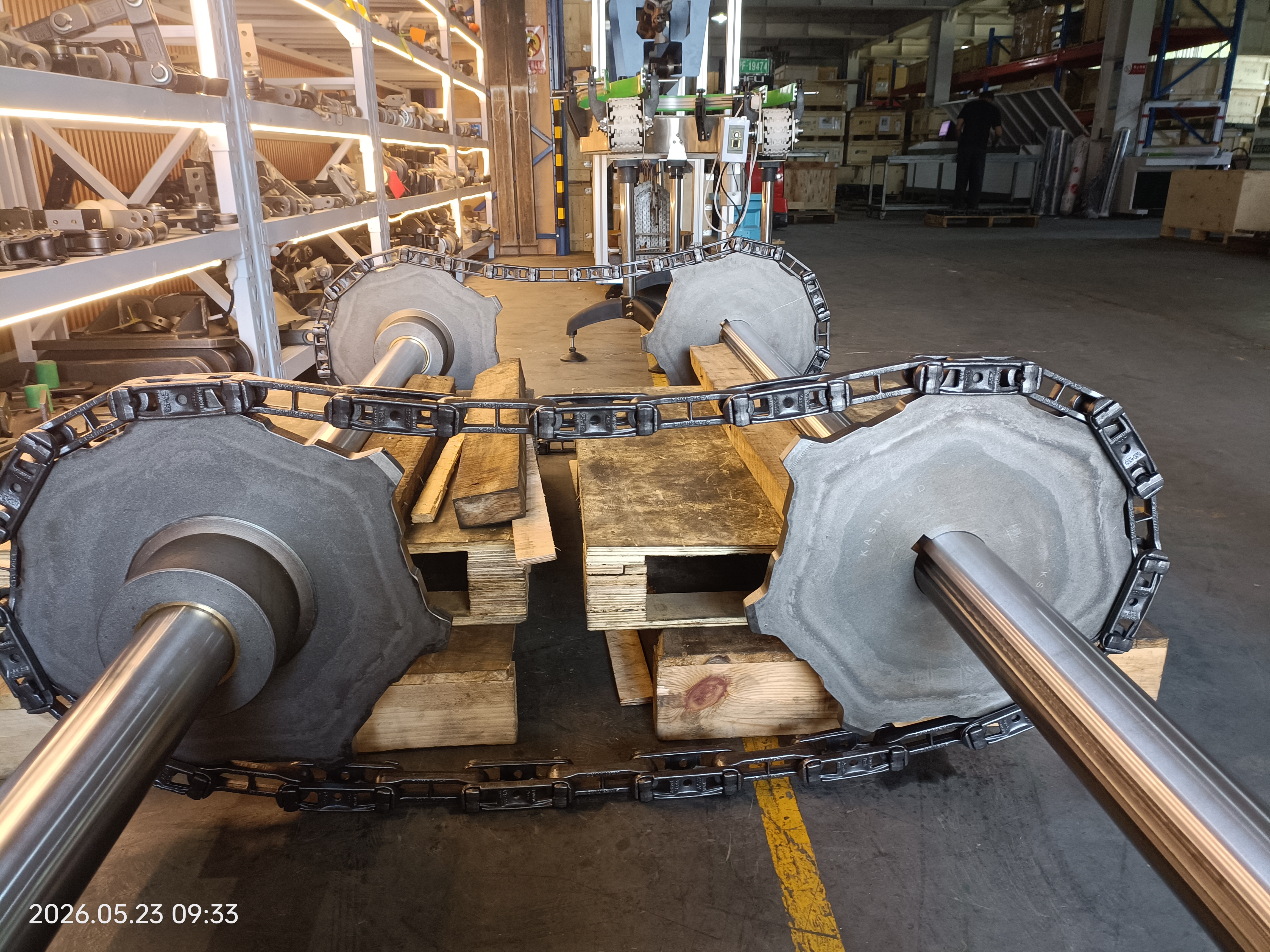

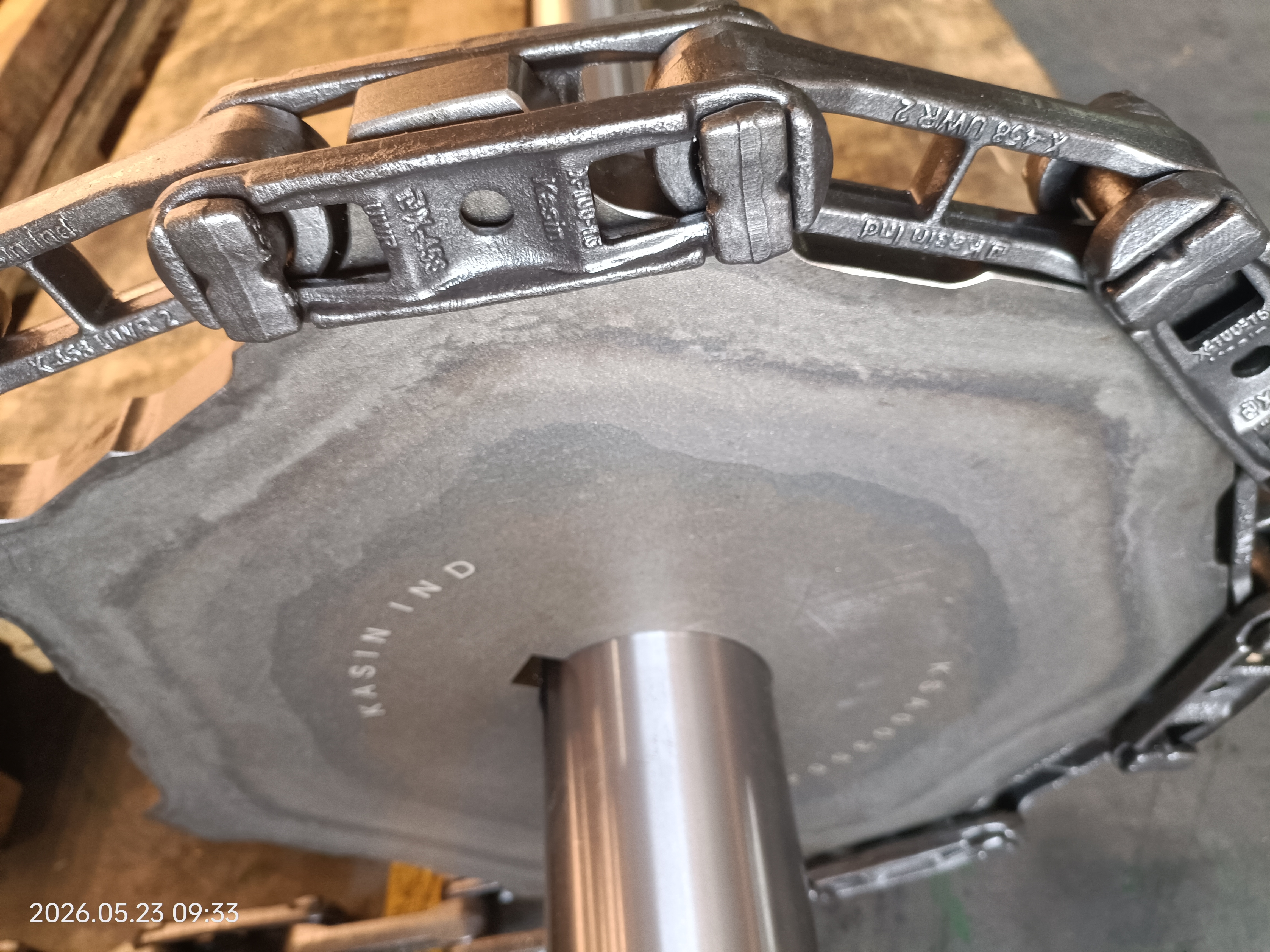

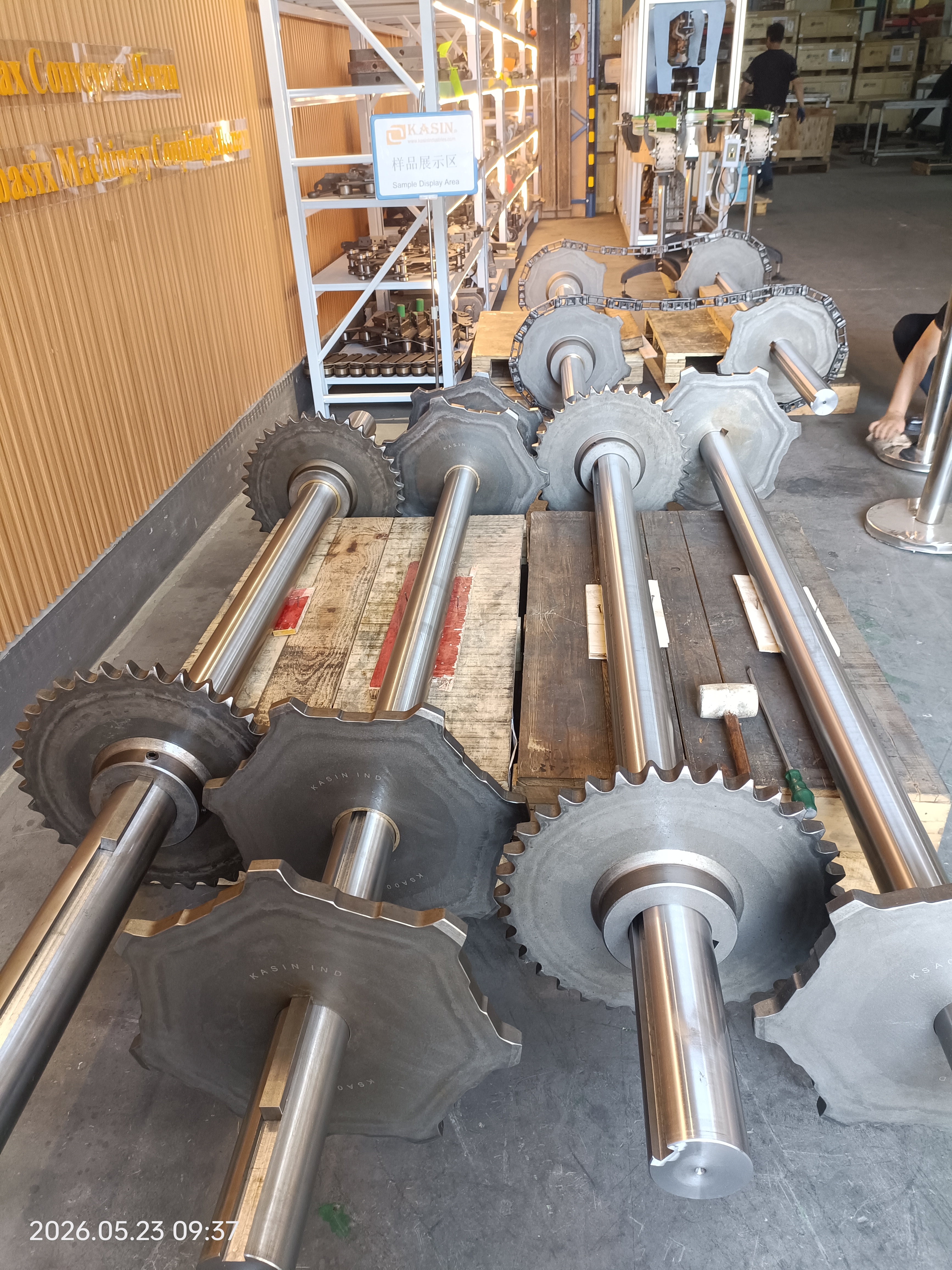

Shaft and sprocket assemblies are the core power-transmission components of a drop forged rivetless chain conveyor. The sprocket engages the chain to transmit drive force, while the shaft transfers torque from the reducer or gearbox to the sprocket.

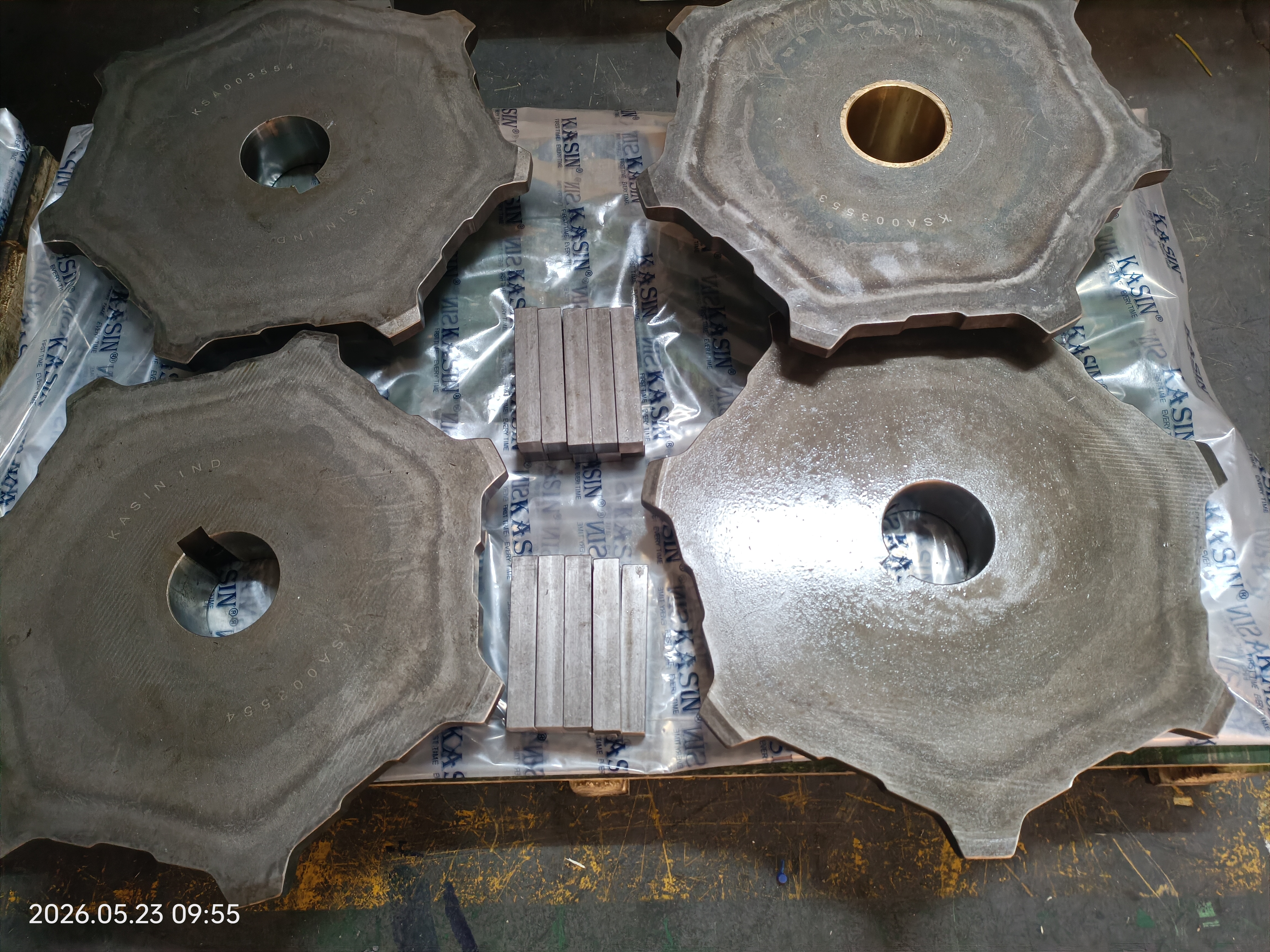

Sprockets are typically drop-forged or machined from alloy steel, then heat-treated and induction-hardened for wear resistance. They are available in drive, idler, and turn configurations to match horizontal curves and straight runs.

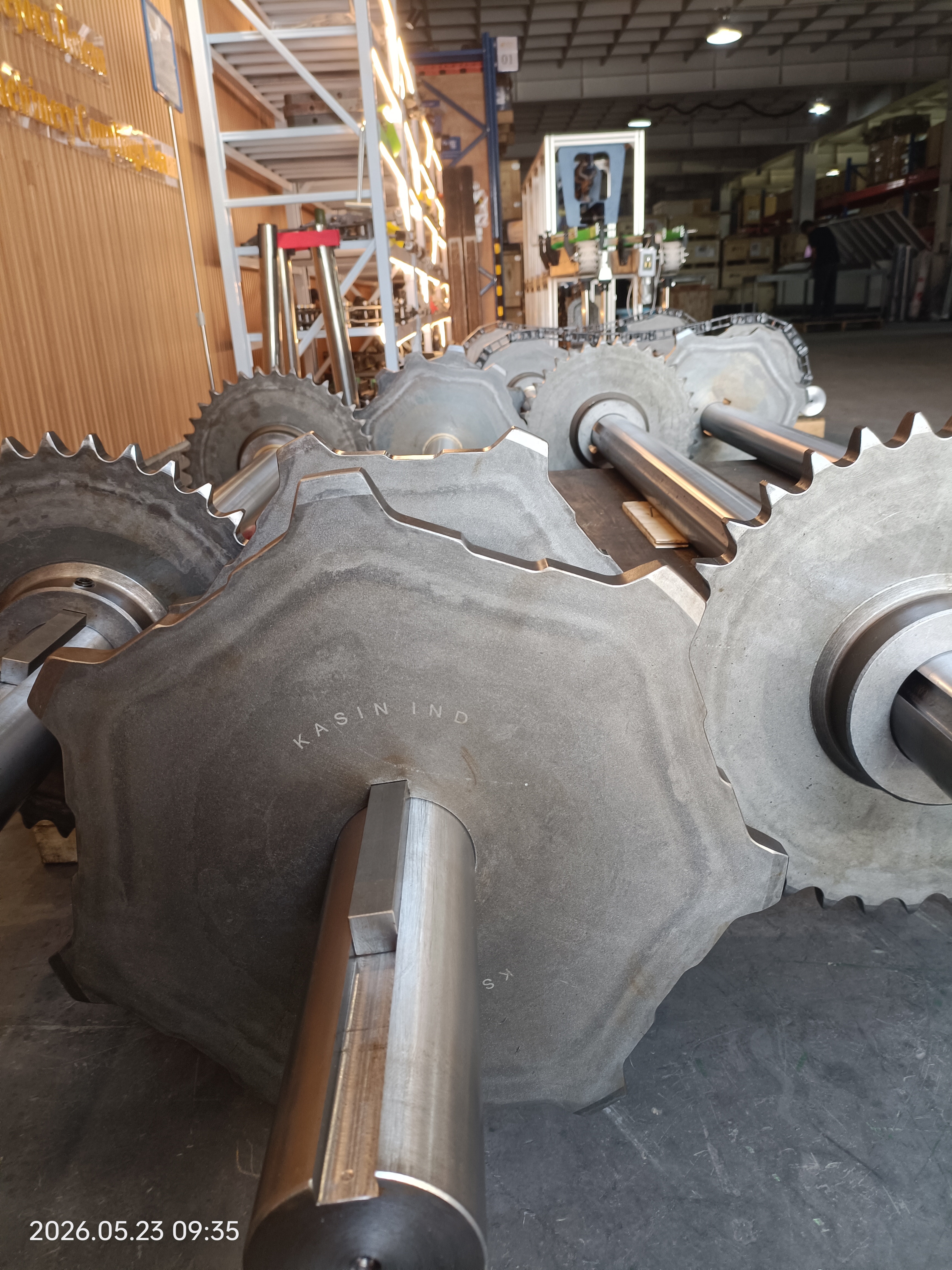

Shafts are precision-machined from carbon or alloy steel, with keyed or splined profiles for secure torque transfer. They are designed to withstand high radial and torsional loads in extreme-duty service.

Both components must match the specific chain number (X348, X458, X678, etc.) and the system's chain pull, speed, and layout requirements. For custom sizing and load calculations, contact the conveyor manufacturer directly.
