Kasin manufactures predictable wear life from cement industries chains, and it will be high-performance chains to keep running at maximum capacity. High shock loads, dust and debris, hot materials, steep inclines,etc.
Kasin Pins and bushings are made from alloy steel and deep casehardened for maximum wear life and toughness. Pins and plates are through hardened for superior strength and toughness.There are no stress risersin plate holes, so chain life is maximized.
Kasin manufactured to the tightest tolerances for higher quality and designed to provide maximum fatigue life. Our in-house heat treatment allows us to better control the process and to deliver longer-lasting chains.
Plates are through hardened for better strength and toughness.
Bushes are case hardened for better wear resistance.
Pins are through hardened for better core strength and circumferential, Induction hardened for improved wear resistance.
Higher Tensile Strength.
Chains supplied with Induction hardened Flange Rollers & Shafts.
All components shot peened.

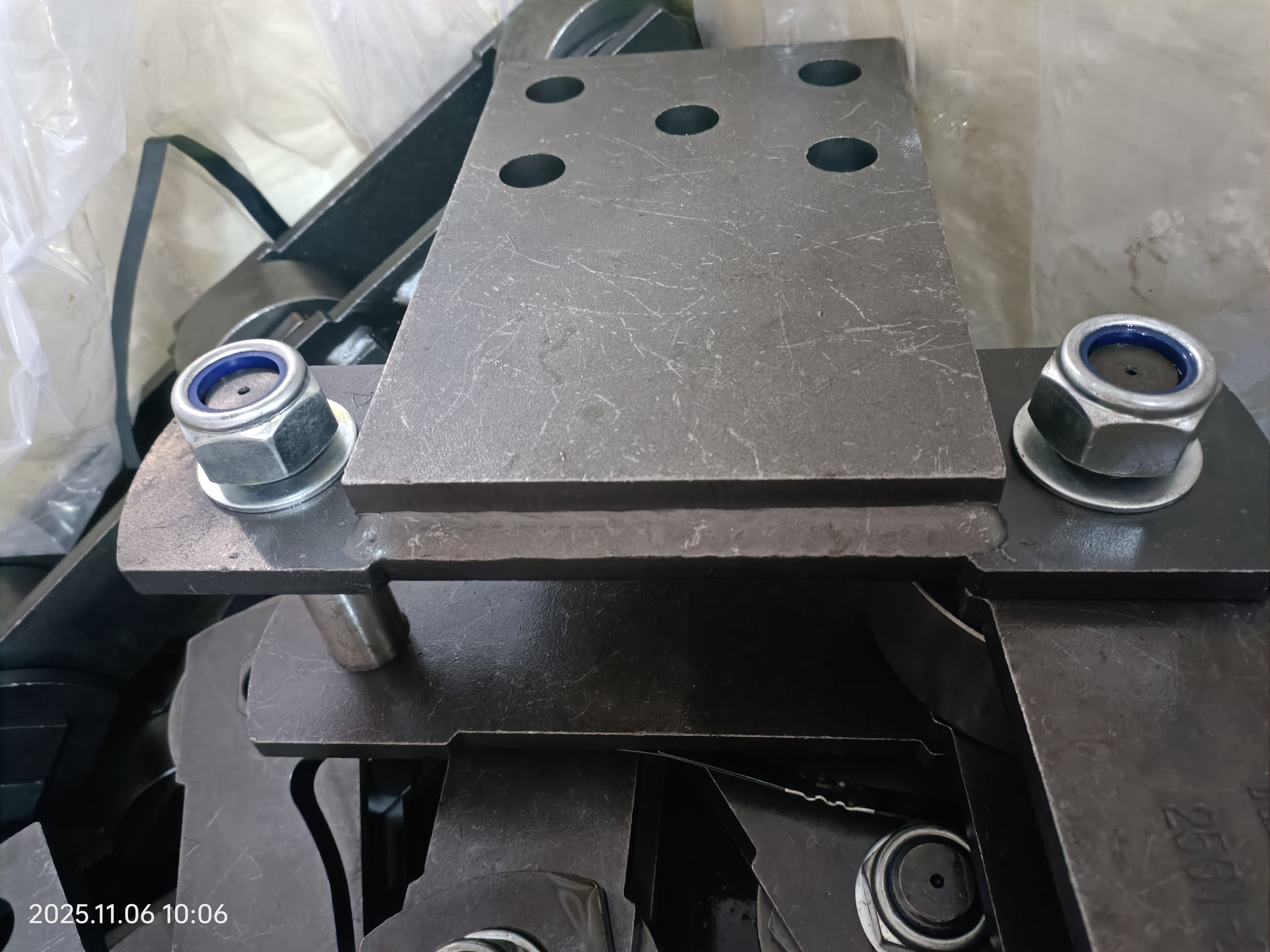

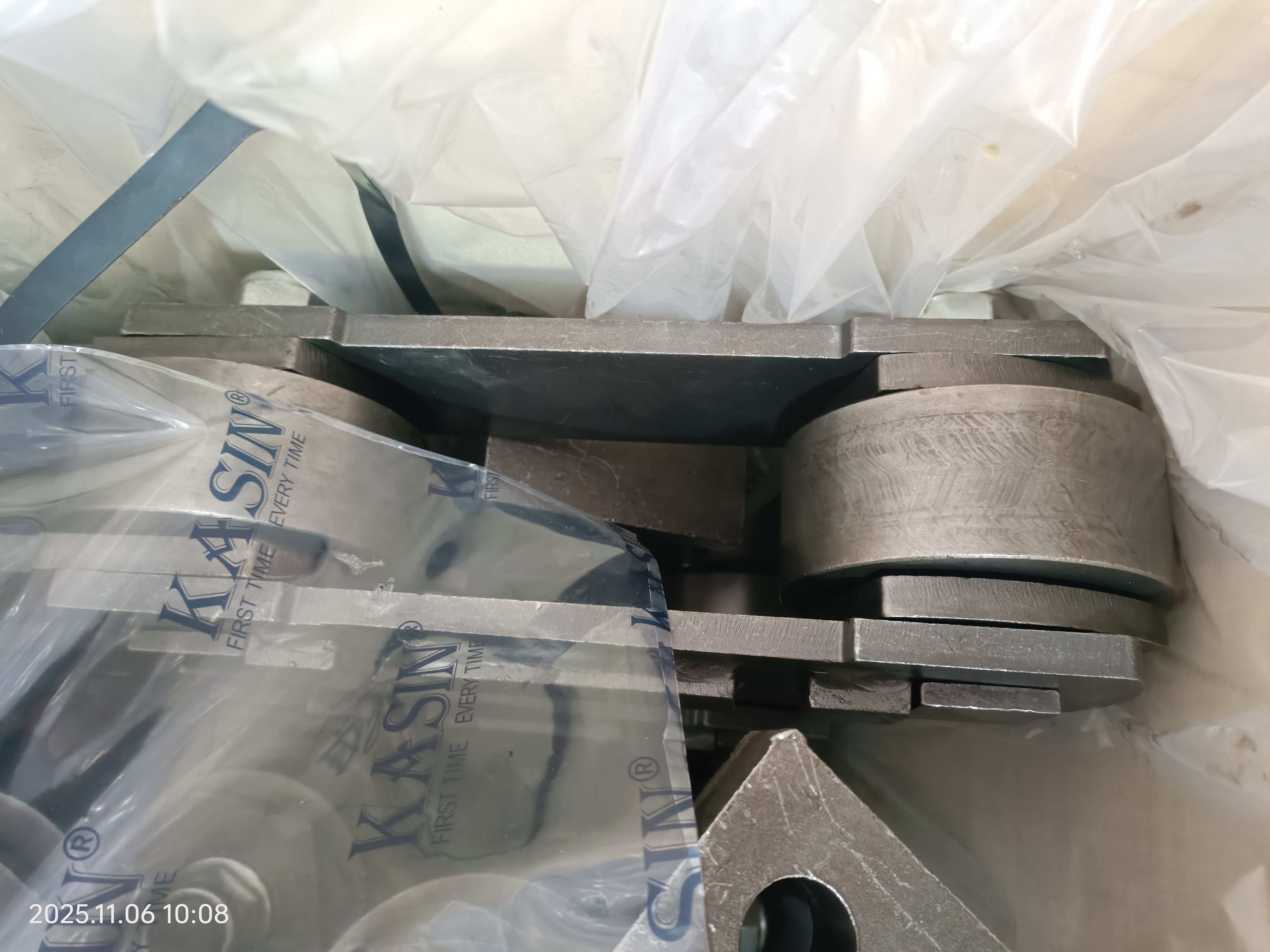

Bucket Elevators Chains
With their proven quality,strength and reliability Kasin Bucket Elevatorshavebecome a synonym for efficientverticaltransport of any kindof bulk material under severeoperatingconditions and in continuous operation.
Feed taker Chains
Apron Feeder Chains
FU Series of Scraper Chains
Engineering Conveyor Chains
Drop Forging Scraper Chains
Drop Forging Rivetless Chains
Bushed Chains & Attachments
Crank-Link Bushed Breaker Chains
Heavy-Duty Crank-Link Drive Chains
Kasin manufactures predictable wear life from cement industries chains, and it will be high-performance chains to keep running at maximum capacity. High shock loads, dust and debris, hot materials, steep inclines,etc.
Kasin Pins and bushings are made from alloy steel and deep casehardened for maximum wear life and toughness. Pins and plates are through hardened for superior strength and toughness.There are no stress risersin plate holes, so chain life is maximized.
Kasin manufactured to the tightest tolerances for higher quality and designed to provide maximum fatigue life. Our in-house heat treatment allows us to better control the process and to deliver longer-lasting chains.
Plates are through hardened for better strength and toughness.
Bushes are case hardened for better wear resistance.
Pins are through hardened for better core strength and circumferential, Induction hardened for improved wear resistance.
Higher Tensile Strength.
Chains supplied with Induction hardened Flange Rollers & Shafts.
All components shot peened.
Bucket Elevators Chains
With their proven quality,strength and reliability Kasin Bucket Elevatorshavebecome a synonym for efficientverticaltransport of any kindof bulk material under severeoperatingconditions and in continuous operation.
Feed taker Chains
Apron Feeder Chains
FU Series of Scraper Chains
Engineering Conveyor Chains
Drop Forging Scraper Chains
Drop Forging Rivetless Chains
Bushed Chains & Attachments
Crank-Link Bushed Breaker Chains
Heavy-Duty Crank-Link Drive Chains
Chain No. | Pitch | Width between inner sidebars | Bush Diameter | Pin | Sidebar | Ultimate Tensile Strength | Weight per Meter | ||
P | b₁ (min) | D(max) | d | [ | h | T₁/T₂ | Fu(min) | q | |
mm | mm | mm | mm | mm | mm | mm | kN | kg/m | |
ER102B | 101.6 | 52.83 | 25.4 | 15.75 | 109.2 | 38.1 | 9.5 | 190 | 9.98 |
ER111 | 120.9 | 65.53 | 36.52 | 18.92 | 125.8 | 50.8 | 9.5 | 213.4 | 18.63 |
ER110 | 152.4 | 52.83 | 31.75 | 15.75 | 109.2 | 38.1 | 9.5 | 160 | 9.33 |
ER856 | 152.4 | 76.2 | 44.45 | 25.4 | 152.2 | 63.5 | 12.7 | 364.5 | 24.57 |
ER956 | 152.4 | 74.9 | 44.45 | 25.4 | 152.2 | 76.2 | 12.7 | 431.2 | 24.72 |
ER857 | 152.4 | 76.2 | 44.45 | 25.4 | 152.2 | 82.6 | 12.7 | 431.2 | 31.27 |
ER958 | 152.4 | 76.2 | 50.8 | 28.7 | 154.2 | 82.6 | 14.3 | 431.2 | 31.27 |
ER859 | 152.4 | 95.2 | 60.45 | 31.75 | 193.5 | 101.6 | 16 | 689 | 50.63 |
ER864 | 177.8 | 95.25 | 60.45 | 31.75 | 193.5 | 101.6 | 16 | 689 | 49.14 |
ER984 | 177.8 | 92.25 | 63.5 | 35.1 | 186.7 | 101.6 | 15.7 | 689 | 49.14 |
Chain No. | Pitch | Width between inner sidebars | Bush Diameter | Pin | Sidebar | Ultimate Tensile Strength | Weight per Meter | ||
P | b₁ (min) | D(max) | d | [ | h | T₁/T₂ | Fu(min) | q | |
mm | mm | mm | mm | mm | mm | mm | kN | kg/m | |
ER102B | 101.6 | 52.83 | 25.4 | 15.75 | 109.2 | 38.1 | 9.5 | 190 | 9.98 |
ER111 | 120.9 | 65.53 | 36.52 | 18.92 | 125.8 | 50.8 | 9.5 | 213.4 | 18.63 |
ER110 | 152.4 | 52.83 | 31.75 | 15.75 | 109.2 | 38.1 | 9.5 | 160 | 9.33 |
ER856 | 152.4 | 76.2 | 44.45 | 25.4 | 152.2 | 63.5 | 12.7 | 364.5 | 24.57 |
ER956 | 152.4 | 74.9 | 44.45 | 25.4 | 152.2 | 76.2 | 12.7 | 431.2 | 24.72 |
ER857 | 152.4 | 76.2 | 44.45 | 25.4 | 152.2 | 82.6 | 12.7 | 431.2 | 31.27 |
ER958 | 152.4 | 76.2 | 50.8 | 28.7 | 154.2 | 82.6 | 14.3 | 431.2 | 31.27 |
ER859 | 152.4 | 95.2 | 60.45 | 31.75 | 193.5 | 101.6 | 16 | 689 | 50.63 |
ER864 | 177.8 | 95.25 | 60.45 | 31.75 | 193.5 | 101.6 | 16 | 689 | 49.14 |
ER984 | 177.8 | 92.25 | 63.5 | 35.1 | 186.7 | 101.6 | 15.7 | 689 | 49.14 |
