C2100HSS
KASIN
7315119000

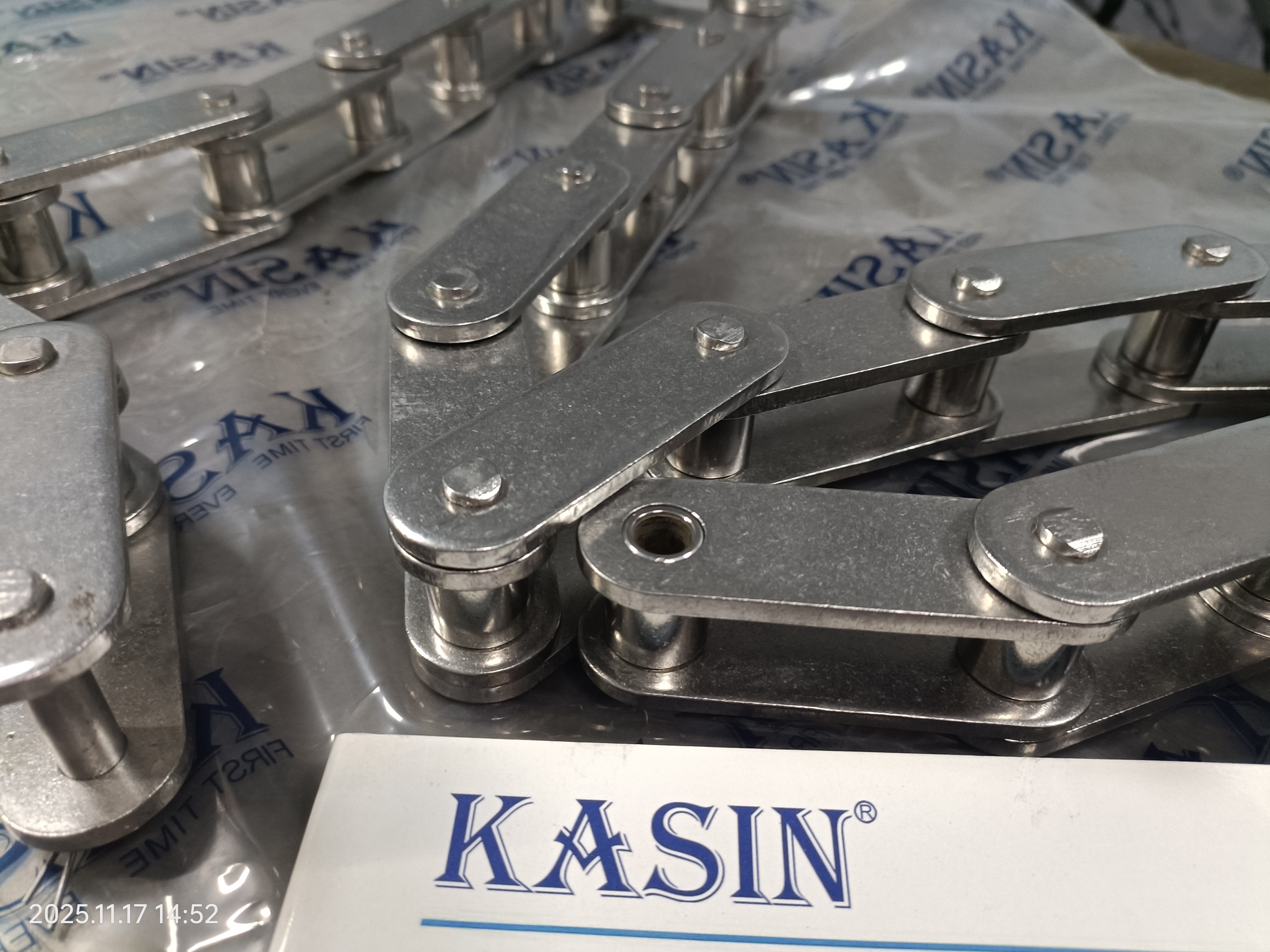

Our Double Pitch Roller Chains are manufactured in strict compliance with international standards such as ANSI, guaranteeing excellent interchangeability and reliability. Constructed from high-quality alloy steel and processed with precision heat treatment, this series of chains maintains sufficient tensile strength while significantly reducing overall weight and operational noise.
The extended pitch design minimizes the frequency of engagement with sprockets, making it ideally suited for applications that require long-distance conveyance rather than high speed, such as in bottling and canning lines, packaging machinery, warehouse logistics systems, and cleaning equipment. We offer a variety of attachment options, including extended pins and raised sidebar, to meet your customized conveying needs at various workstations.
Key Features:
Extended Pitch: Pitch is twice that of standard chains, ideal for long-center-distance conveying.
Lighter Weight: Reduces overall equipment load and power consumption.
Cost-Effective: Provides an economical solution without compromising conveying functions.
Robust & Durable: High-quality steel and heat treatment ensure an extended service life.
Versatile Attachments: Supports various attachments for multi-functional conveying.
| Kasin Chain No. | Pitch | RoIIer diameter | Width between inner pIates | Pin diameter | Pin Iength | Inner pIate depth | PIate thickness | Maximum AIIowabIe Load | Average tensiIe strength | Approx Weight | ||||||||||||||||||||||||||||||||||||||||
| P | D max | W min | d max | L max | L1 max | H max | T max | M max | A ave | B | ||||||||||||||||||||||||||||||||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | Kg/m | ||||||||||||||||||||||||||||||||||||||||
| C2040 | 25.40 | 7.95 | 7.85 | 3.96 | 16.60 | 17.80 | 12.00 | 1.50 | 14.10 | 16.70 | 0.50 | |||||||||||||||||||||||||||||||||||||||
| C2042 | 25.40 | 15.88 | 7.85 | 3.96 | 16.60 | 17.80 | 12.00 | 1.50 | 14.10 | 16.70 | 0.84 | |||||||||||||||||||||||||||||||||||||||
| C2050 | 31.75 | 10.16 | 9.40 | 5.08 | 20.70 | 22.20 | 15.00 | 2.03 | 22.20 | 28.10 | 0.78 | |||||||||||||||||||||||||||||||||||||||
| C2052 | 31.75 | 19.05 | 9.40 | 5.08 | 20.70 | 22.20 | 15.00 | 2.03 | 22.20 | 28.10 | 1.27 | |||||||||||||||||||||||||||||||||||||||
| C2060 | 38.10 | 11.91 | 12.57 | 5.94 | 25.90 | 27.70 | 18.00 | 2.42 | 31.80 | 36.80 | 1.12 | |||||||||||||||||||||||||||||||||||||||
| C2060H | 38.10 | 11.91 | 12.57 | 5.94 | 29.20 | 31.60 | 18.00 | 3.25 | 31.80 | 41.60 | 1.44 | |||||||||||||||||||||||||||||||||||||||
| C2062 | 38.10 | 22.23 | 12.57 | 5.94 | 25.90 | 27.70 | 18.00 | 2.42 | 31.80 | 36.80 | 1.61 | |||||||||||||||||||||||||||||||||||||||
| C2062H | 38.10 | 22.23 | 12.57 | 5.94 | 29.20 | 31.60 | 18.00 | 3.25 | 31.80 | 41.60 | 2.07 | |||||||||||||||||||||||||||||||||||||||
| C2080 | 50.80 | 15.88 | 15.75 | 7.92 | 32.70 | 36.50 | 24.00 | 3.25 | 56.70 | 65.70 | 2.08 | |||||||||||||||||||||||||||||||||||||||
| C2080H | 50.80 | 15.88 | 15.75 | 7.92 | 36.20 | 39.40 | 24.00 | 4.00 | 56.70 | 70.00 | 2.54 | |||||||||||||||||||||||||||||||||||||||
| C2082 | 50.80 | 28.58 | 15.75 | 7.92 | 32.70 | 36.50 | 24.00 | 3.25 | 56.70 | 65.70 | 3.12 | |||||||||||||||||||||||||||||||||||||||
| C2082H | 50.80 | 28.58 | 15.75 | 7.92 | 36.20 | 39.40 | 24.00 | 4.00 | 56.70 | 70.00 | 3.58 | |||||||||||||||||||||||||||||||||||||||
| C2100 | 63.50 | 19.05 | 18.90 | 9.53 | 40.40 | 44.70 | 30.00 | 4.00 | 88.50 | 102.60 | 3.01 | |||||||||||||||||||||||||||||||||||||||
| C2100H | 63.50 | 19.05 | 18.90 | 9.53 | 43.60 | 46.90 | 30.00 | 4.80 | 88.50 | 112.40 | 3.56 | |||||||||||||||||||||||||||||||||||||||
| C2102 | 63.50 | 39.67 | 18.90 | 9.53 | 40.40 | 44.70 | 30.00 | 4.00 | 88.50 | 102.60 | 4.83 | |||||||||||||||||||||||||||||||||||||||
| C2102H | 63.50 | 39.67 | 18.90 | 9.53 | 43.60 | 46.90 | 30.00 | 4.80 | 88.50 | 112.40 | 5.38 | |||||||||||||||||||||||||||||||||||||||
| C2120 | 76.20 | 22.23 | 25.22 | 11.10 | 50.30 | 54.30 | 35.70 | 4.80 | 127.00 | 147.30 | 4.66 | |||||||||||||||||||||||||||||||||||||||
| C2120H | 76.20 | 22.23 | 25.22 | 11.10 | 53.50 | 57.50 | 35.70 | 5.60 | 127.00 | 160.90 | 5.26 | |||||||||||||||||||||||||||||||||||||||
| C2122 | 76.20 | 44.45 | 25.22 | 11.10 | 50.30 | 54.30 | 35.70 | 4.80 | 127.00 | 147.30 | 7.66 | |||||||||||||||||||||||||||||||||||||||
| C2122H | 76.20 | 44.45 | 25.22 | 11.10 | 53.50 | 57.50 | 35.70 | 5.60 | 127.00 | 160.90 | 8.26 | |||||||||||||||||||||||||||||||||||||||
| Note 1、Chains above are used in sIow speed, Iow Ioad, and/or where the center distance is Iong 2、StainIess steeI materiaI are aIso provided normaIIy 3、Customized-sizes are avaiIabIe, pIease consuIt a KΛSIN representative for more information | ||||||||||||||||||||||||||||||||||||||||||||||||||
