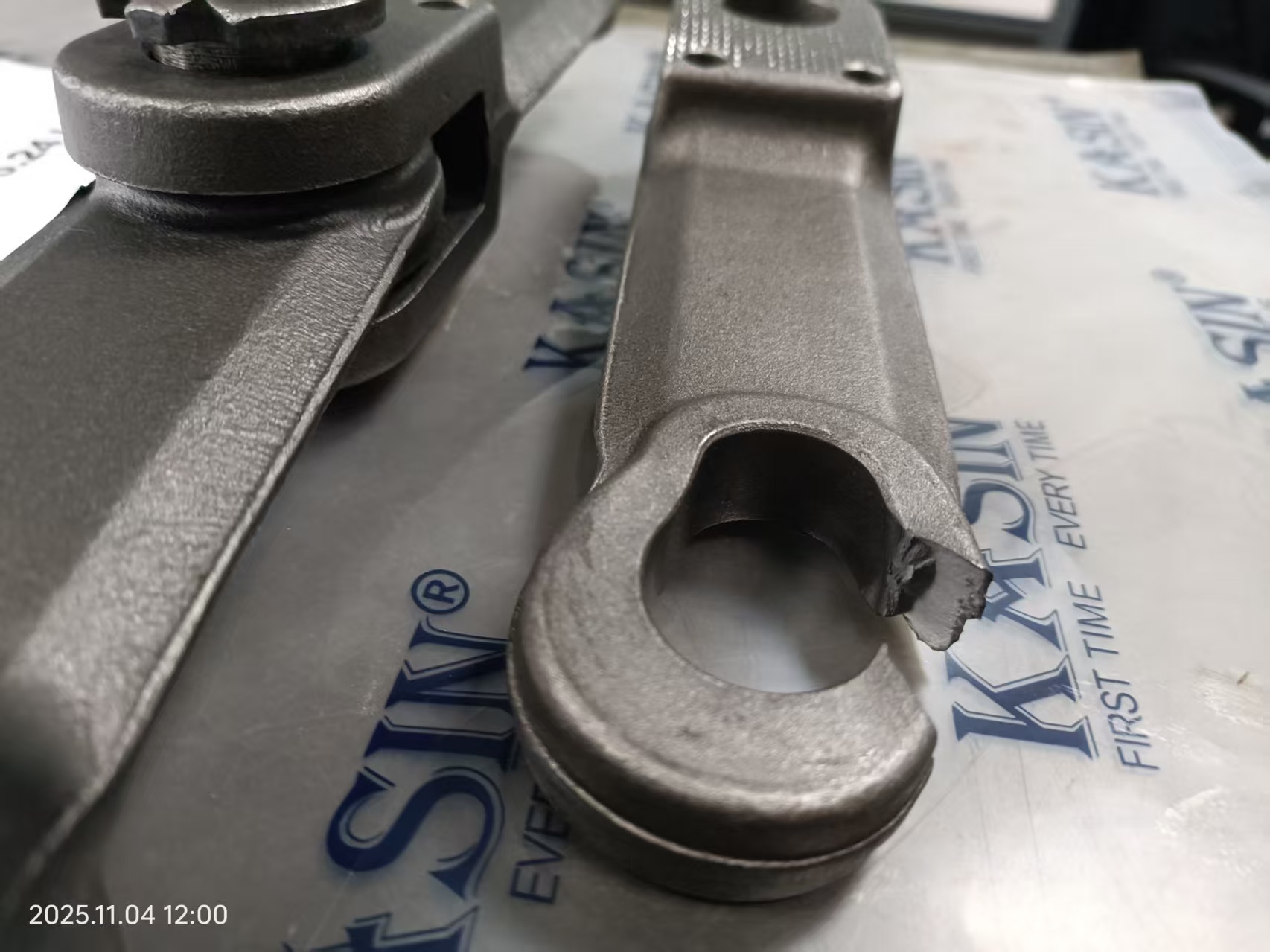

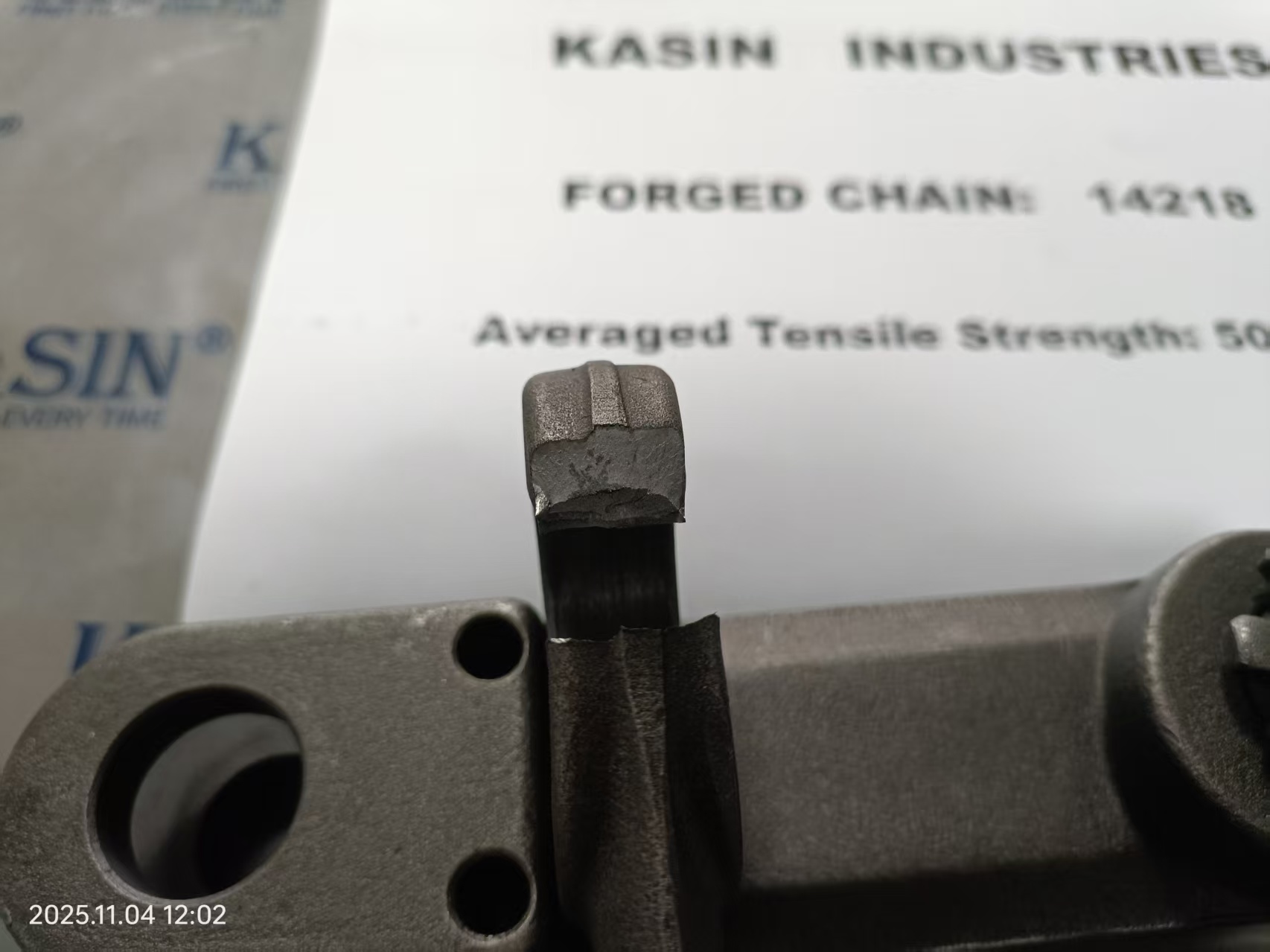

KASIN Drop forged conveyor chain is a reliable solution for a diverse range of conveying applications in industries such as power generation, wood pellet production, hazardous waste incineration, mineral processing, mining, cement, pulp and paper, grain handling, and food processing. It is commonly utilized in drag and en-masse conveyors for moving material horizontally or on an incline up to 90 degrees; using a skeletal chain and flight assembly that is drawn along the bottom section of an enclosed housing. The flights are either welded or bolted onto the chain links. The links are made of heat treated forged steel with typical internal core hardness of 40 HRC and surface hardness of 57-62 HRC. Its exceptional combination of internal ductility, external hardness, and high strength-to-weight ratio makes drop forged chain a durable, dependable, versatile, and severe duty conveying medium.
Standard
Standard type is furnished with heat treated pins that are symmetrical and may be reversed when one side is worn. Standard drop forged chain can be furnished in carbon steel or high strength alloy steel materials.
Kasin Chain No. | Dimension | Materials | ||||||||||||||
P | T | S | F | H | R | D | ||||||||||
10160 | 101.6 | 24 | 13 | 14 | 36 | 6 | Φ 14 | |||||||||
10160R | 101.6 | 30 | 13 | 14 | 36 | 9 | Φ 14 | |||||||||
12534 | 125 | 34 | 17 | 18 | 35 | 8 | Φ 17 | |||||||||
12538 | 125 | 38 | 18 | 20 | 38 | 10 | Φ 18 | |||||||||
12550 | 125 | 50 | 24 | 26 | 46 | 15 | Φ20 | |||||||||
12552S | 125 | 52 | 24 | 26 | 60 | 16 | Φ26 | |||||||||
14242R | 142 | 42 | 19 | 20 | 50 | 11 | Φ25 | |||||||||
14262R | 142 | 62 | 28 | 30 | 50 | 15 | Φ25 | |||||||||
14246 | 142 | 46 | 22 | 23.5 | 49 | 14 | Φ25 | 40Cr | ||||||||
14264 | 142 | 64 | 28.5 | 30.5 | 50 | 18 | Φ25 | 20MnCr5 | ||||||||
14243S | 142 | 43 | 19 | 22 | 50 | 12.5 | Φ25 | 20CrMnTi | ||||||||
15042R | 150 | 42 | 16 | 18 | 48 | 12 | Φ25 | 42CrMo4 | ||||||||
15036R | 150 | 36 | 15 | 18 | 36 | 10 | Φ 18 | |||||||||
15038 | 150 | 38 | 18 | 19 | 40 | 10 | Φ 18 | |||||||||
15060 | 150 | 60 | 28 | 30 | 70 | 18 | Φ30 | |||||||||
16048 | 160 | 48 | 23 | 25 | 39 | 13 | Φ20 | |||||||||
16058 | 160 | 58 | 28 | 30 | 55 | 18 | Φ25 | |||||||||
16066S | 160 | 66 | 29 | 31 | 64 | 22 | Φ28 | |||||||||
20066R | 200 | 66 | 30 | 32 | 60 | 18 | Φ30 | |||||||||
20042R | 200 | 42 | 20 | 22 | 45 | 12 | Φ20 | |||||||||
20087 | 200 | 87 | 38 | 40 | 85 | 30 | Φ36 | |||||||||
20080S | 200 | 80 | 35 | 38 | 70 | 25 | Φ28 | |||||||||
20048 | 200 | 48 | 23 | 25 | 58 | 18 | Φ25 | |||||||||
20070 | 200 | 70 | 27 | 29 | 70 | 17 | Φ35 | |||||||||
26070R | 260 | 70 | 31 | 33 | 75 | 20 | Φ34 | |||||||||
1、The breaking load depends on the chain material. | ||||||||||||||||
2、Typical welded flight attachments are equiped with drop forged chain,consisting of Square Bar Flight, Flat Bar Flight,U-Flight,Closed-U Flight,OO-Flight etc. 3、Customer flights are available,based on specifications |
